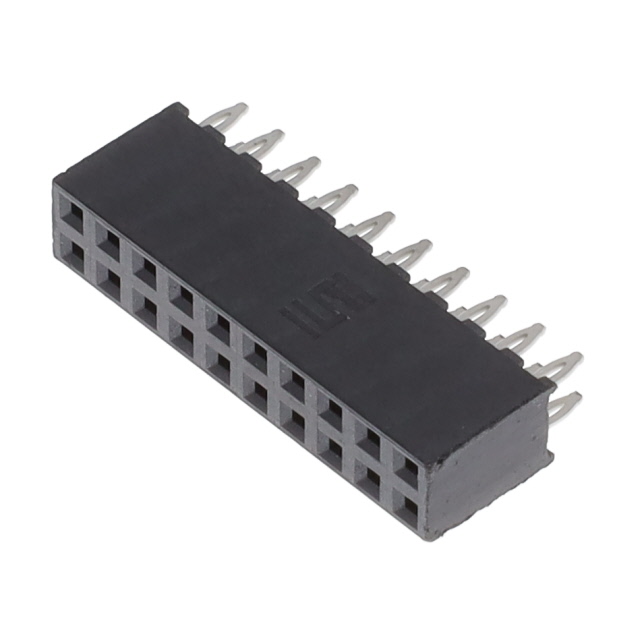

PTF-110-01-S-D
Or copy the link below:
- Mfr.Part #
- PTF-110-01-S-D
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- 2.00 MM PRESS-FIT SOCKET STRIP
- Stock
- 180
- In Stock ：
- 180
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Receptacles, Female Sockets
- Mating Contact Row Spacing :
- 0.079 inch
- Reference Standard :
- UL, CSA
- Mounting Option 1 :
- LOCKING
- Additional Feature :
- POLARIZED
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Housing Material :
- Polymer
- Contact Material :
- Bronze
- Body Breadth :
- 0.158 inch
- Contact Plating :
- Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Gender :
- FEMALE
- Factory Lead Time :
- 3 Weeks
- MIL Conformance :
- No
- Housing Color :
- Black
- PCB Contact Pattern :
- RECTANGULAR
- Contact Style :
- SQ PIN-SKT
- Number of Rows :
- 2
- Pitch :
- 2mm
- Number of Contacts :
- 20
- Mounting Type :
- BOARD
- DIN Conformance :
- No
- Connector Type :
- BOARD CONNECTOR
- Number of Conductors :
- ONE
- Pbfree Code :
- yes
- Contact Pattern :
- RECTANGULAR
- RoHS Status :
- ROHS3 Compliant
- Option :
- GENERAL PURPOSE
- Depth :
- 4mm
- Filter Feature :
- No
- Mixed Contacts :
- No
- Body/Shell Style :
- Socket
- Length :
- 20.3mm
- Orientation :
- Straight
- Reliability :
- COMMERCIAL
- JESD-609 Code :
- e3
- Max Operating Temperature :
- 125°C
- Min Operating Temperature :
- -55°C
- Mounting Option 2 :
- Latch
- Durability :
- 100 Cycles
- ECCN Code :
- EAR99
- Termination :
- Press-Fit
- HTS Code :
- 8536.69.40.40
- Number Of PCB Rows :
- 2
- Plating Thickness :
- 30μin
- IEC Conformance :
- No
- Datasheets
- PTF-110-01-S-D
2 Rows BOARD CONNECTOR Press-Fit Bronze BOARD
PTF-110-01-S-D Overview
A BOARD CONNECTOR package is included with it.Its mounting type is BOARD.Additionally, there are other features, such as POLARIZED.Whenever it's below 125°C, it's best to use it.The device must operate at a temperature of -55°C at all times.
PTF-110-01-S-D Features
PTF-110-01-S-D Applications
There are a lot of Samtec Inc.
PTF-110-01-S-D Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
