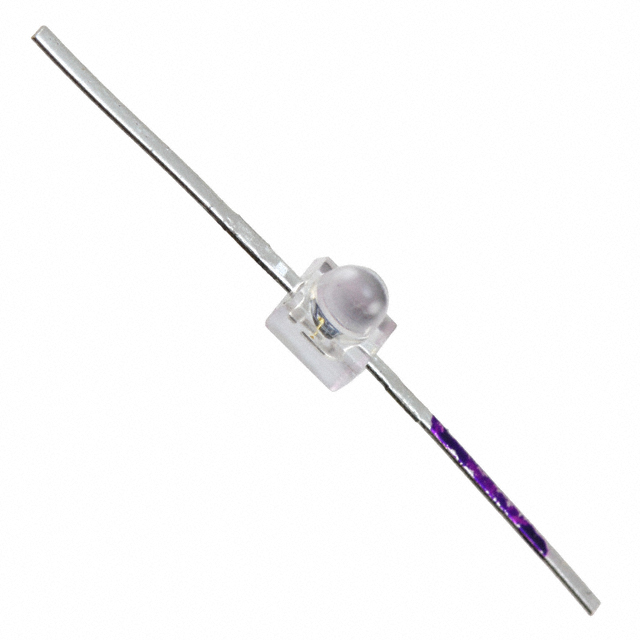

PT91-21C

Manufacturer :

Everlight Electronics

Product Category :

Optical Sensors - Phototransistors

Polarity :

NPN

Light Current-Nom :

1.5mA

Operating Temperature :

-25°C~85°C TA

Max Power Dissipation :

75mW

Optoelectronic Device Type :

PHOTO TRANSISTOR

Number of Elements :

1

Lens Color :

Clear

Dark Current :

100nA

Power Dissipation :

75mW

Lens Style :

Clear, Domed

Mount :

Surface Mount, Through Hole

Orientation :

Top View

Number of Pins :

2

Collector Emitter Voltage (VCEO) :

5V

Shape :

Round

Configuration :

Single

Number of Functions :

1

Pbfree Code :

yes

Published :

2005

Collector Emitter Breakdown Voltage :

30V

Additional Feature :

HIGH SENSITIVITY

Rise Time :

15μs

Mounting Type :

Through Hole

Package / Case :

Axial

Max Collector Current :

20mA

Packaging :

Bulk

Radiation Hardening :

No

Fall Time (Typ) :

15 µs

Wavelength :

940nm

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Infrared Range :

yes

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

20 Weeks
