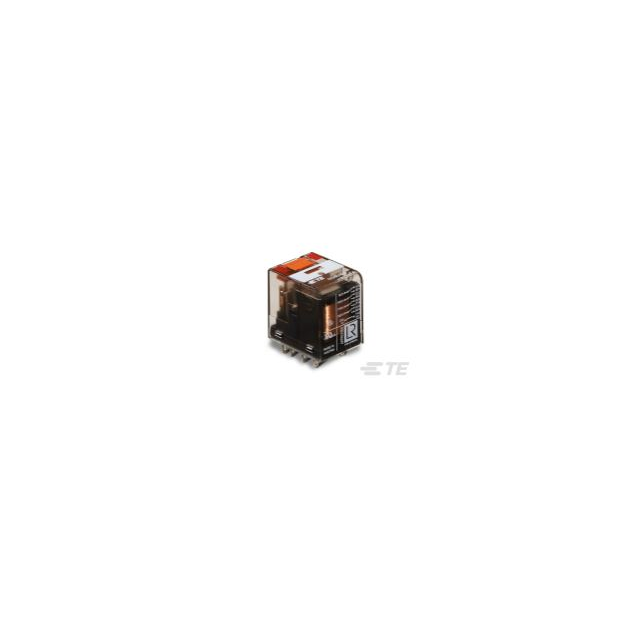

PT580615
Or copy the link below:
- Mfr.Part #
- PT580615
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Dust Cover
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE 4PDT 6A 115V
- Stock
- 48,162
- In Stock ：
- 48,162
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Must Release Voltage :
- 34.5 VAC
- Packaging :
- Box
- Switching Voltage :
- 240 VAC
- Width :
- 22.5 mm
- Voltage Rating (VAC) :
- 240(V)
- Height :
- 29 mm
- Contact Material :
- Silver Nickel (AgNi)
- Manufacturer :
- TE Connectivity
- Mounting Type :
- Socketable
- Contact Current Rating :
- 12(A)
- Product Type :
- General Purpose Relays
- RoHS :
- Details
- Pick-up Voltage (Max) :
- 103.5VAC
- Coil Insulation :
- -
- Coil Type :
- Non-Latching
- Package :
- Bulk
- Coil Resistance :
- 4845(ohm)
- Product Height (mm) :
- 35(mm)
- Coil Suppression Diode :
- No
- Operating Temperature :
- -40°C ~ 70°C
- Series :
- PT
- Coil Voltage AC :
- 115
- Subcategory :
- Relays
- Relay Construction :
- Non-Latching
- Operate Time :
- 15(ms)
- Product :
- Power Relays
- Pin Count :
- 14
- Must Operate Voltage :
- 92 VAC
- LED Indicator :
- No
- Package / Case :
- Dust Cover
- Seal Rating :
- -
- Type :
- Industrial Relay
- Termination Style :
- Quick Connect
- Contact Form :
- 4 Form C
- Product Depth (mm) :
- 22.5(mm)
- Mounting Style :
- Plug-In
- Dropout Volt :
- 34.5VAC
- Coil Voltage :
- 115 VAC
- Power Consumption :
- 1 VA
- Brand :
- TE Connectivity
- Rad Hardened :
- No
- Color :
- Black
- Features :
- Mechanical Indicator, Test Button
- Length :
- 28 mm
- Product Status :
- Active
- Contact Rating (Current) :
- 6 A
- Seal :
- FLUX SEALED
- Contact Arrangement :
- 4PDT
- Material :
- Polyvinylidene with Thermoplastic Elastomer (TPE)
- Relay Type :
- GENERAL PURPOSE
- Base Product Number :
- PT580
- Contact Termination :
- Quick Connect
- Product Category :
- General Purpose Relays
- Maximum Power Rating :
- 1.5KVA
- Operating Temp Range :
- -40C to 70C
- Product Length (mm) :
- 28(mm)
- Datasheets
- PT580615
