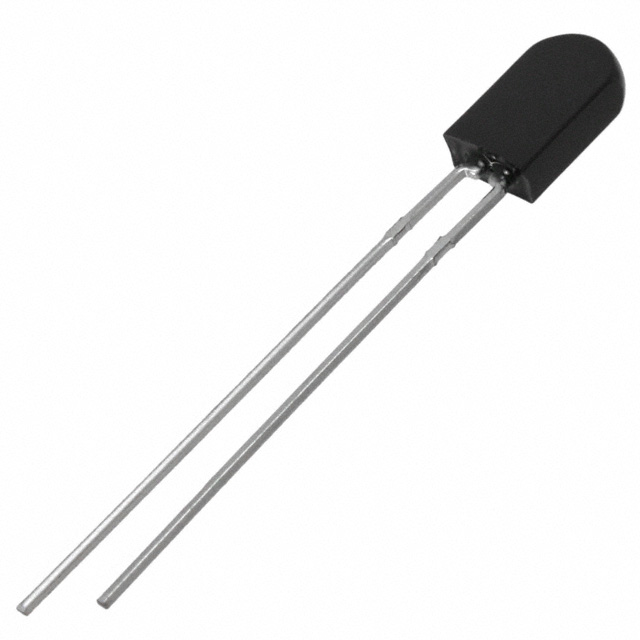

PT534-6B
Or copy the link below:
- Mfr.Part #
- PT534-6B
- Manufacturer
- Everlight Electronics
- Package / Case
- Radial, 5mm Dia (T 1 3/4)
- Datasheet
- Download
- Description
- SENSOR PHOTO 940NM TOP VIEW RAD
- Stock
- 431
- In Stock ：
- 431
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Everlight Electronics
- Product Category :
- Optical Sensors - Phototransistors
- Configuration :
- Single
- Power Dissipation-Max :
- 0.075W
- Light Current-Nom :
- 1.2mA
- Max Collector Current :
- 20mA
- Dark Current :
- 100nA
- Number of Functions :
- 1
- Package / Case :
- Radial, 5mm Dia (T 1 3/4)
- Size :
- 5mm
- HTS Code :
- 8541.40.70.80
- Shape :
- Round
- Published :
- 2013
- Mount :
- Through Hole
- Wavelength :
- 940nm
- Optoelectronic Device Type :
- PHOTO TRANSISTOR
- Polarity :
- NPN
- Infrared Range :
- yes
- Collector Emitter Breakdown Voltage :
- 30V
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Bulk
- Lens Style :
- Domed
- Mounting Type :
- Through Hole
- Radiation Hardening :
- No
- Number of Pins :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Factory Lead Time :
- 20 Weeks
- Operating Temperature :
- -40°C~85°C
- Orientation :
- Top View
- Collector Emitter Voltage (VCEO) :
- 5V
- Lens Color :
- Black
- Datasheets
- PT534-6B
PT534-6B datasheet pdf and Optical Sensors - Phototransistors product details from Everlight Electronics Co Ltd stock available at
