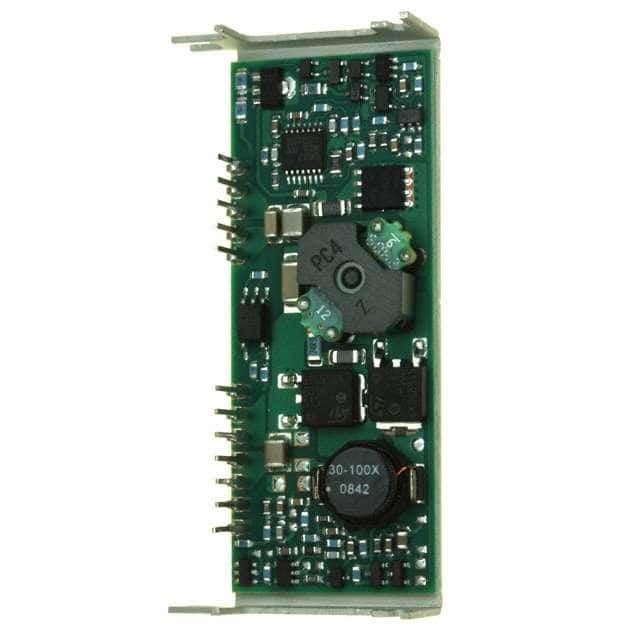

PT4509N
Or copy the link below:
- Mfr.Part #
- PT4509N
- Manufacturer
- Texas Instruments
- Package / Case
- 12-SIP Module
- Datasheet
- Download
- Description
- DC-DC REGULATED POWER SUPPLY MOD
- Stock
- 13,957
- In Stock ：
- 13,957
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Texas Instruments
- Product Category :
- DC DC Switching Controllers
- Series :
- Excalibur™ PT4500 (20W)
- Current - Output 1 :
- 5A
- Output Voltage :
- 1.2V
- Efficiency :
- 59%
- Voltage - Input (Min) :
- 18V
- Voltage - Input (Max) :
- 40V
- Mounting Type :
- Through Hole
- Max Power Dissipation :
- 6W
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Outputs :
- 1
- Nominal Input Voltage :
- 24V
- Height :
- 25.908mm
- Packaging :
- Tray
- Terminal Pitch :
- 2.54mm
- Power (Watts) :
- 20W
- Pin Count :
- 12
- Voltage - Isolation :
- 1.5kV
- Type :
- Isolated Module
- Terminal Position :
- Single
- Total Power Output-Max :
- 6W
- Max Output Current :
- 5A
- Package / Case :
- 12-SIP Module
- ECCN Code :
- EAR99
- Lead Free :
- Lead Free
- Base Part Number :
- PT4509
- Qualification Status :
- Not Qualified
- Output Power :
- 6W
- Trim/Adjustable Output :
- yes
- Input Voltage-Nom :
- 24V
- Voltage - Output 1 :
- 1.2V
- Operating Temperature :
- -40°C~85°C
- Number of Functions :
- 1
- Size / Dimension :
- 2.58Lx0.50W x 1.02 H 65.5mmx12.7mmx25.9mm
- Applications :
- ITE (Commercial)
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- RoHS Status :
- ROHS3 Compliant
- Mount :
- Through Hole
- Number of Terminations :
- 12
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Datasheets
- PT4509N
DC DC Switching Controllers Texas Instruments PT4509N Overview
Introducing the PT4509N from Texas Instruments, a state-of-the-art DCDC regulated power supply module, specifically designed to meet the rigorous demands of high-performance electronics. This compact module exemplifies advanced engineering in power management, offering efficient, reliable power conversion in a wide array of industrial and commercial applications. As part of the highly acclaimed DC DC Switching Controllers category, the PT4509N is engineered to optimize power usage, ensuring enhanced performance and longevity of your electronic devices. It stands out for its ability to handle complex, variable load conditions with utmost precision.
