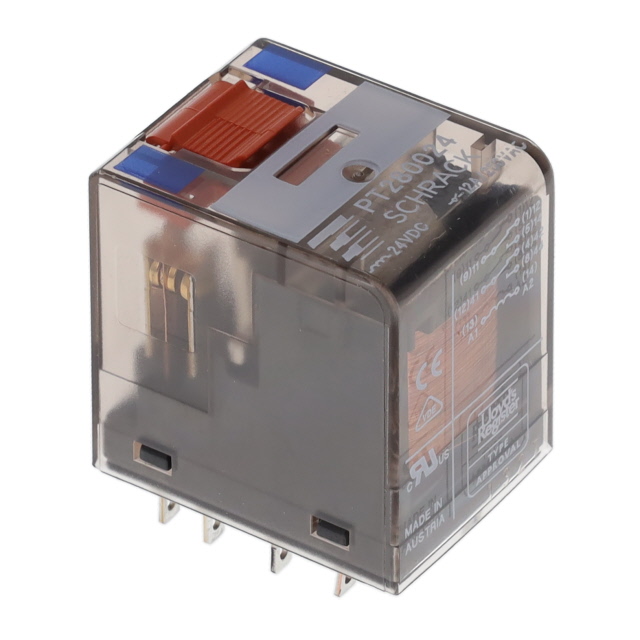

PT280024
Or copy the link below:
- Mfr.Part #
- PT280024
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE DPDT 12A 24V
- Stock
- 14
- In Stock ：
- 14
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Operating Temperature (Min) :
- -45°C
- Factory Lead Time :
- 29 Weeks
- Coil/Input Supply Type :
- DC
- Coil Release Voltage(DC) :
- 2.4V
- RoHS Status :
- RoHS Compliant
- Relay Function :
- DPDT
- Packing Method :
- Box
- Release Time :
- 15 ms
- Contact Current(DC)-Max :
- 12A
- Operating Temperature (Max) :
- 70°C
- Published :
- 2015
- Body Length or Diameter :
- 28mm
- Contact/Output Supply Type :
- AC/DC
- Physical Dimension :
- 28mm X 22.5mm X 29mm
- Mounting Feature :
- SOCKET MOUNT
- Termination Type :
- Snap-On
- Operate Time :
- 20 ms
- Relay Type :
- POWER/SIGNAL RELAY
- Surface Mount :
- No
- Body Breadth :
- 22.5 mm
- Coil Resistance :
- 777Ohm
- Coil Voltage(DC)-Max :
- 24V
- Body Height :
- 29mm
- Contact Voltage(AC)-Max :
- 250V
- Relay Action :
- Momentary
- Contact (AC) Max Rating R Load :
- 12A@250VAC
- Coil Power :
- 750mW
- Coil Operate Voltage(DC) :
- 18V
- Contact Current(AC)-Max :
- 12A
- Reference Standard :
- CE; UL; VDE
- Coil Current(DC)-Max :
- 0.031A
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- PT280024
PT280024 datasheet pdf and Power Relays, Over 2 Amps product details from TE Connectivity Potter & Brumfield Relays stock available at
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
