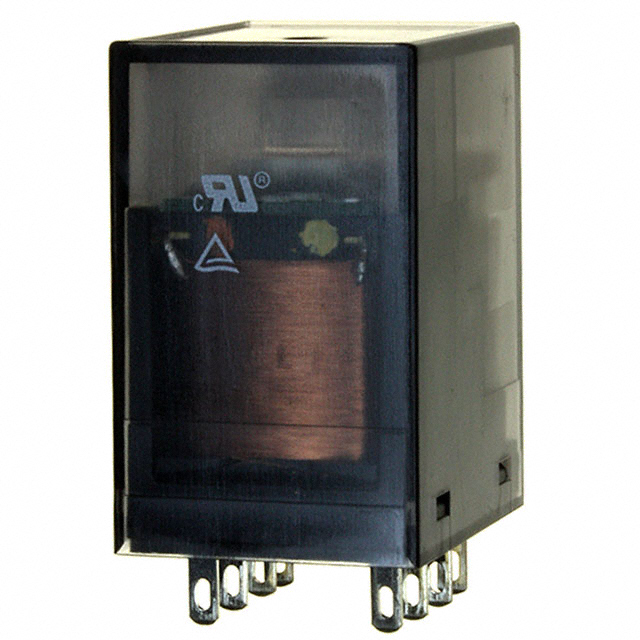

PT22A615B
Or copy the link below:
- Mfr.Part #
- PT22A615B
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE DPDT 12A 115V
- Stock
- 14,619
- In Stock ：
- 14,619
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Mount :
- Socket, Socketable
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Switching Voltage :
- 440VAC -Max
- Operating Temperature :
- -45°C~70°C
- Relay Action :
- Momentary
- Body Breadth :
- 22.1 mm
- Electrical Life :
- 50000 Cycle(s)
- Max Voltage Rating (AC) :
- 440V
- Termination :
- PLUG
- Coil Voltage :
- 115VAC
- Sealing :
- RT2
- Coil Resistance :
- 4.85kOhm
- Packaging :
- Bulk
- Coil/Input Supply Type :
- AC
- Reach Compliance Code :
- Unknown
- Relay Type :
- GENERAL PURPOSE
- Coil Voltage (AC) :
- 115V
- Contact (AC) Max Rating R Load :
- 12A@12VAC
- Coil Type :
- Non Latching
- Additional Feature :
- COIL OPERATE VOLTAGE(AC): 103.5 V, COIL RELEASE VOLTAGE(AC): 34.5 V
- Published :
- 2008
- Series :
- PTH, SCHRACK
- Must Operate Voltage :
- 92VAC
- Number of Pins :
- 8
- Reference Standard :
- CQC; TUV; UL
- Max Current Rating :
- 24A
- Throw Configuration :
- DPDT
- Contact/Output Supply Type :
- AC/DC
- Contact Material :
- Silver Nickel (AgNi)
- RoHS Status :
- RoHS Compliant
- Coil Power :
- 1W
- Operate Time :
- 20ms
- ECCN Code :
- EAR99
- Approval Agency :
- CSA, TUV, UL, VDE
- Must Release Voltage :
- 34.5VAC
- Release Time :
- 20 ms
- Mounting Type :
- Socketable
- Coil Current :
- 8.8mA
- Current Rating :
- 12A
- Contact Form :
- DPDT (2 Form C)
- Body Height :
- 36mm
- Termination Style :
- Plug In
