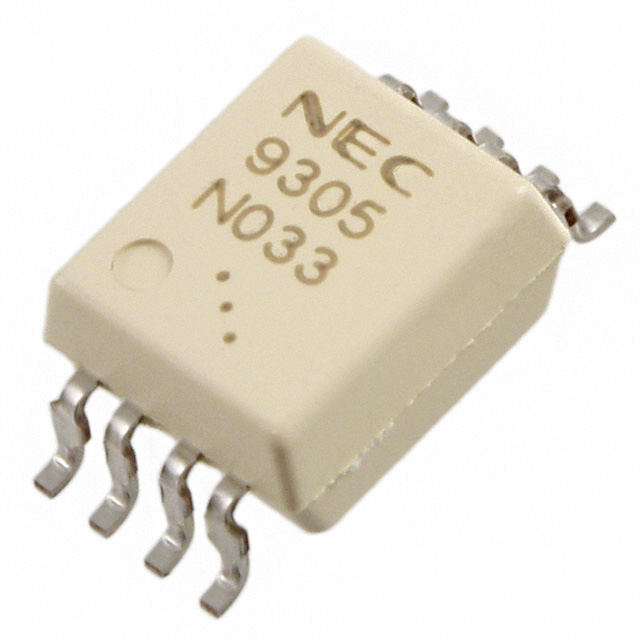

PS9305L-E3-AX

Manufacturer :

Intersil (Renesas Electronics Corporation)

Product Category :

Isolators - Gate Drivers

Factory Lead Time :

16 Weeks

Pulse Width Distortion (Max) :

100ns

Number of Channels :

1

Number of Elements :

1

Radiation Hardening :

No

Voltage - Isolation :

5000Vrms

Number of Pins :

8

Max Power Dissipation :

250mW

Rise / Fall Time (Typ) :

50ns 50ns

Additional Feature :

UL RECOGNIZED

Current - Output High, Low :

2A 2A

Common Mode Transient Immunity (Min) :

25kV/μs

Voltage - Output Supply :

15V~30V

Pbfree Code :

yes

Operating Temperature :

-40°C~110°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Tape and Reel (TR)

Configuration :

Single

Mounting Type :

Surface Mount

Current - Peak Output :

2.5A

Voltage - Forward (Vf) (Typ) :

1.56V

Direction :

Unidirectional

Propagation Delay :

250 ns

Fall Time (Typ) :

50 ns

Propagation Delay tpLH / tpHL (Max) :

250ns, 250ns

Current - DC Forward (If) (Max) :

25mA

RoHS Status :

ROHS3 Compliant

Approval Agency :

CSA, SEMKO, UL

Package / Case :

8-SOIC (0.268, 6.81mm Width)

Optoelectronic Device Type :

LOGIC IC OUTPUT OPTOCOUPLER
