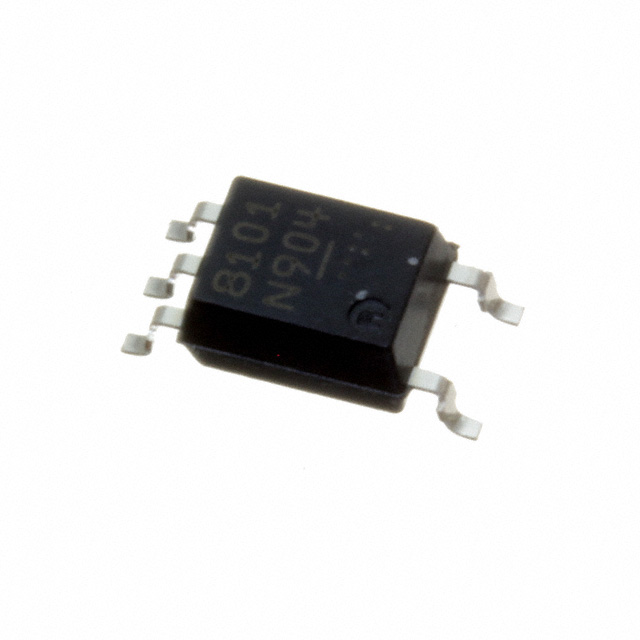

PS8101-AX

Manufacturer :

Intersil (Renesas Electronics Corporation)

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Packaging :

Bulk

Factory Lead Time :

16 Weeks

Current - Output / Channel :

8mA

Number of Channels :

1

Input Type :

DC

Mounting Type :

Surface Mount

Number of Elements :

1

Operating Temperature :

-55°C~100°C

Voltage - Isolation :

3750Vrms

Current - DC Forward (If) (Max) :

25mA

Additional Feature :

UL RECOGNIZED

Forward Current-Max :

0.025A

RoHS Status :

ROHS3 Compliant

Pbfree Code :

yes

Published :

2009

Voltage - Forward (Vf) (Typ) :

1.7V

Turn On / Turn Off Time (Typ) :

500ns, 600ns

Series :

NEPOC

Optoelectronic Device Type :

LINEAR IC OUTPUT OPTOCOUPLER

Package / Case :

6-SOIC (0.173, 4.40mm Width), 5 Leads

Data Rate :

1 Mbps

Configuration :

Single

Current Transfer Ratio (Max) :

35% @ 16mA

Current Transfer Ratio (Min) :

15% @ 16mA

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Voltage - Output (Max) :

35V

JESD-609 Code :

e4

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Type :

Transistor
