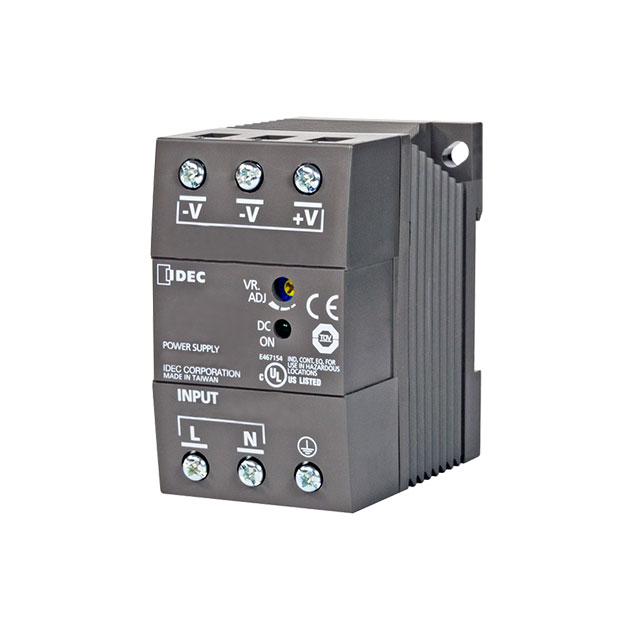

PS5R-VD24

Manufacturer :

IDEC

Product Category :

Factory Lead Time :

4 Weeks

Trim/Adjustable Output :

yes

Size / Dimension :

4.25Lx1.42W x 3.74 H 108.0mmx36.0mmx95.0mm

Output Voltage :

24V

Approval Agency :

CE, cULus, TUV

Number of Functions :

1

Output Power :

60W

Applications :

Hazardous Locations, Industrial, ITE (Commercial)

Max Voltage Rating (AC) :

264V

Moisture Sensitivity Level (MSL) :

Not Applicable

Number of Terminations :

6

Max Output Power :

60W

Current - Output 1 :

2.5A

Min Input Voltage (AC) :

85V

Feature :

Adjustable Output, IP20, Universal Input

Series :

PS5R-V (60W)

RoHS Status :

ROHS3 Compliant

Voltage - Output 1 :

24V

Voltage - Isolation :

3kV

Published :

2015

Efficiency :

86%

Number of Outputs :

1

Type :

Enclosed

Terminal Position :

UNSPECIFIED

Terminal Form :

UNSPECIFIED

Mounting Type :

DIN Rail

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Operating Temperature :

-25°C~70°C With Derating

Input Voltage-Nom :

100V

Surface Mount :

No

REACH SVHC :

Unknown

Voltage - Input :

85V~264VAC 100V~370VDC

JESD-30 Code :

R-XXMA-X6
