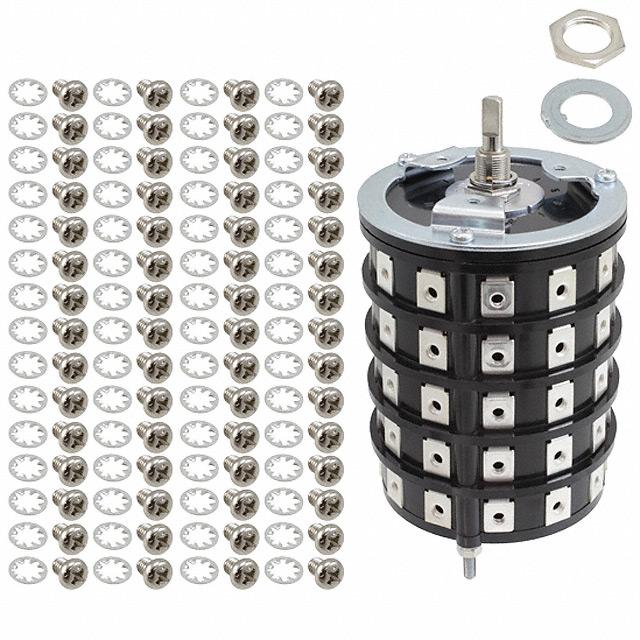

PS5N

Manufacturer :

NKK Switches

Product Category :

Index Angle :

30 °

Operating Force :

71gfm

Depth :

76mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Min Operating Temperature :

-10°C

Current Rating (Amps) :

30A AC

Voltage - Rated AC :

125V

Number of Pins :

11

Max Voltage Rating (AC) :

250V

Depth Behind Panel :

116.50mm

Actuator Length :

15.00mm

Length :

76mm

Mounting Type :

Panel Mount

Factory Lead Time :

8 Weeks

Contact Plating :

Silver

Throw Configuration :

5P12T

Number of Positions :

2 ~ 11

Current Rating :

30A

Actuator Material :

Brass

Pbfree Code :

yes

Max Operating Temperature :

70°C

Mount :

Panel

RoHS Status :

ROHS3 Compliant

Index Stops :

Adjustable

Switch Type :

ROTARY SWITCH

Reach Compliance Code :

Unknown

Voltage - Rated DC :

250V

Actuator Type :

Flatted (6mm Dia)

Contact Material :

Silver Alloy

Contact Style :

Non-Shorting

Number of Poles per Deck :

1

Published :

2011

Insulation Resistance :

200mOhm

Termination Style :

Screw Terminal

Circuit per Deck :

SP11T

Max Current Rating :

30A

Termination :

Screw

Number of Decks :

5

Panel Cutout Dimensions :

Circular - 10.50mm Dia

Contact Timing :

Non-Shorting (BBM)

Series :

PS
