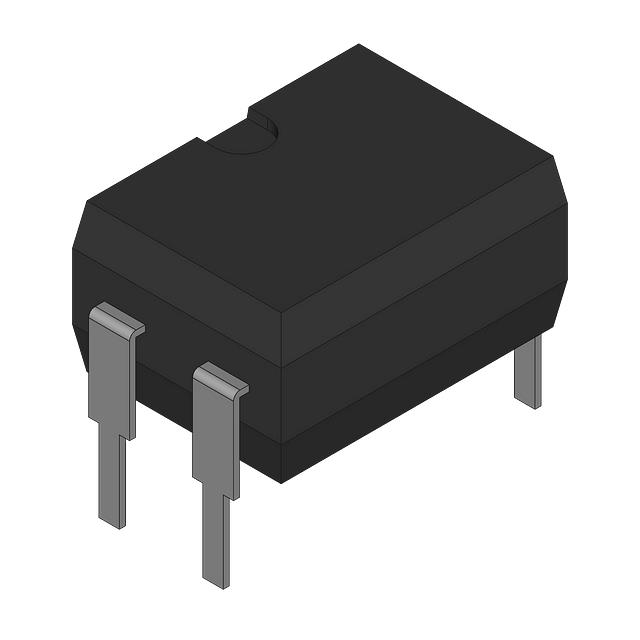

PS2561DL2-1Y-V-E3-A

Manufacturer :

Intersil (Renesas Electronics Corporation)

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Min Operating Temperature :

-55 °C

Forward Voltage :

1.4 V

Current Transfer Ratio (Min) :

50% @ 5mA

Max Input Current :

40 mA

Supplier Device Package :

4-SMD

Input Type :

DC

Packaging :

Tape and Reel

Turn On / Turn Off Time (Typ) :

-

Max Operating Temperature :

110 °C

Product Status :

Obsolete

Forward Current :

40 mA

Radiation Hardening :

No

Number of Elements :

1

Mounting Type :

Surface Mount

Current Transfer Ratio (Max) :

400% @ 5mA

Current - Output / Channel :

50mA

Max Collector Current :

50 mA

Collector Emitter Voltage (VCEO) :

80 V

Power Dissipation :

150 mW

RoHS :

Compliant

Output Type :

Transistor

Voltage - Forward (Vf) (Typ) :

1.2V

Number of Pins :

4

Current Transfer Ratio :

400 %

Voltage - Output (Max) :

80V

Mount :

Surface Mount

Current - DC Forward (If) (Max) :

40 mA

Operating Temperature :

-55°C ~ 110°C

Collector Emitter Saturation Voltage :

300 mV

Package / Case :

4-SMD, Gull Wing

Rise / Fall Time (Typ) :

3μs, 5μs

Vce Saturation (Max) :

300mV

Reverse Breakdown Voltage :

6 V

Package :

Bulk

Series :

NEPOC

Number of Channels :

1

Voltage - Isolation :

5000Vrms

Max Power Dissipation :

150 mW
