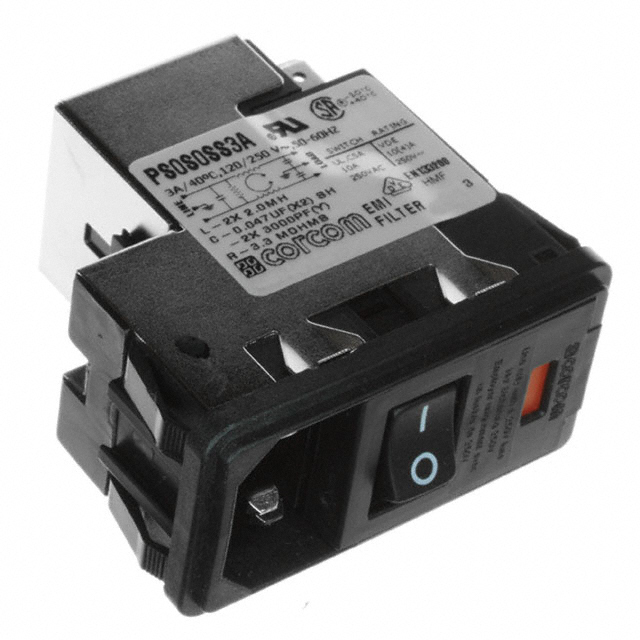

PS0S0SS3A

Manufacturer :

TE Connectivity Corcom Filters

Product Category :

Power Entry Modules (PEM)

Voltage Rating :

250VAC

Lead Free :

Lead Free

Voltage - UL :

250VAC

Packaging :

Bulk

Panel Thickness :

0.031 ~ 0.114 0.79mm ~ 2.90mm

Current - IEC :

3A

Max Current Rating :

3A

Connector Style :

IEC 320-C14

Number of Positions :

3

Number of Contacts :

2

RoHS Status :

RoHS Compliant

REACH SVHC :

Unknown

Width :

31.5mm

Accomodates a Fuse :

Yes (Fuse Not Included)

Number of Poles :

3

Max Voltage Rating (AC) :

250V

Orientation :

Straight

Moisture Sensitivity Level (MSL) :

Not Applicable

Feature :

Conversion Clip, Shielded

Voltage - Rated AC :

250V

Switch Features :

Switch On-Off

Current Rating :

3A

IP Rating :

-

ELV :

Compliant

Current - UL :

3A

Termination :

Quick Connect - 0.187 (4.7mm)

Connector Type :

Receptacle, Male Blades - Module

Voltage - Rated DC :

250V

Switch Type :

2-Pole Switch

Max Operating Temperature :

40°C

Factory Lead Time :

25 Weeks

Voltage - IEC :

120VAC

Number of Ports :

1

Leakage Current :

250μA

Mount :

Snap in

Fuse :

yes

Approval Agency :

CSA, UL, VDE

Current :

3A

Series :

P, Corcom

Package / Case :

Module

Frequency :

30MHz

Fuse Holder, Drawer :

Fuse Holder

Gender :

Male

Mounting Type :

Panel Mount, Snap-In

Min Operating Temperature :

-10°C

Filter Type :

Filtered (EMI, RFI) - Commercial

Voltage - Rated :

250V

Panel Cutout Dimensions :

Variable Size

Published :

2009
