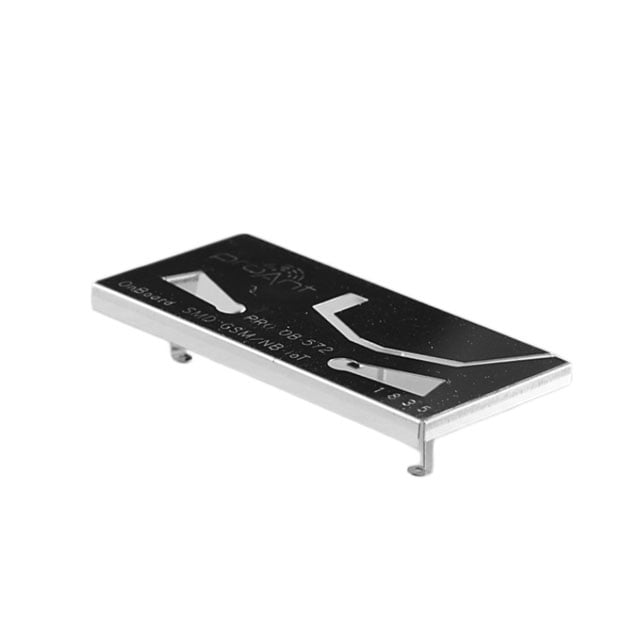

PRO-OB-572

Manufacturer :

Abracon

Product Category :

RF Antennas

Frequency :

-

Minimum Operating Temperature :

- 40 C

Frequency (Center/Band) :

875.5MHz, 1.94GHz

Dimensions :

50 x 25 x 10mm

Termination :

Solder

Number of Bands :

2 Band

Type :

On-Board

Height :

10 mm

Termination Style :

SMD/SMT

Antenna Type :

Stamped Metal

Bandwidth :

169 MHz, 460 MHz

Impedance :

50 Ohms

Ingress Protection :

-

RoHS :

Details

Antenna Connector Type :

-

Base Product Number :

PRO-OB

RF Family/Standard :

Cellular

Mounting Type :

Surface Mount

Application :

Infrastructure IoT, Consumer Elecronics, Wireless Modules, Video and Surveillance, Broadband Cellular, Networking and Telecommunication

Frequency Group :

Wide Band

Cable Length :

-

Gain :

2.2 dBi, 2.3 dBi

Return Loss :

-6dB

Center Frequency :

875.5 MHz,, 1940 MHz

Polarization :

MIxed Linear

VSWR :

-

Features :

-

Series :

Embedded Antenna

Height (Max) :

0.394 (10.00mm)

Package :

Tape and Reel (TR);Cut Tape (CT);

Length :

50 mm

Applications :

GSM, UMTS

Product Status :

Active

Connector Type :

SMA

Width :

25 mm

Cable Type :

-

Maximum Operating Temperature :

+ 125 C

Mounting Style :

PCB Mount

Style :

Metal

Frequency Range :

791 MHz to 960 MHz, 1710 MHz to 2170 MHz

Packaging :

Cut Tape

Product :

PCB Antennas
