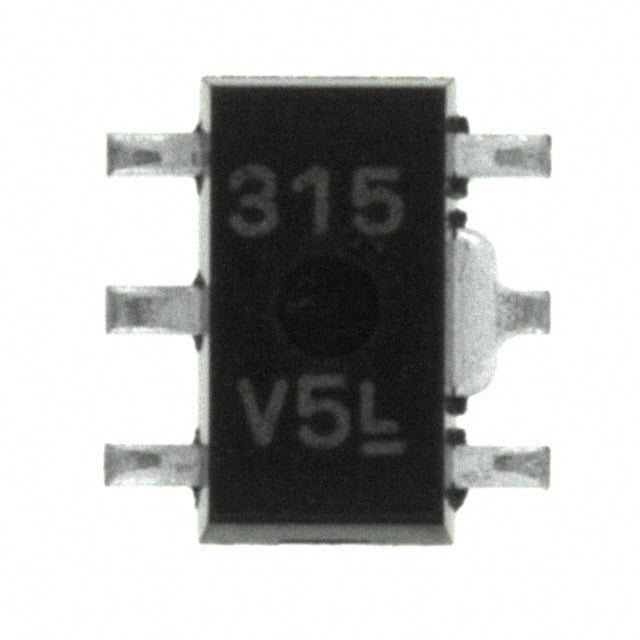

PQ2L2182MSPQ

Manufacturer :

Sharp Microelectronics

Product Category :

Voltage Regulators - Linear

Number of Terminations :

6

JESD-609 Code :

e6

Package / Case :

TO-243AA

Published :

2006

Lead Free :

Lead Free

Number of Functions :

1

Voltage - Input (Max) :

9V

PSRR :

60dB (400kHz)

Dropout Voltage :

160mV

Terminal Finish :

TIN BISMUTH

Terminal Position :

Dual

Height Seated (Max) :

1.7mm

Voltage - Output (Min/Fixed) :

1.8V 2.5V

Voltage Dropout (Max) :

1V @ 200mA 1V @ 200mA

Packaging :

Tape and Reel (TR)

Output Configuration :

Positive

Max Power Dissipation :

900mW

Terminal Pitch :

1.5mm

Current - Output :

250mA 250mA

Peak Reflow Temperature (Cel) :

260

Reach Compliance Code :

Unknown

Terminal Form :

Flat

Operating Temperature :

-30°C~80°C

Input Bias Current :

250μA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Type :

FIXED

Protection Features :

Over Current, Over Temperature

RoHS Status :

RoHS Compliant

JESD-30 Code :

R-PDSO-F6

Output Voltage :

1.8V

Current - Quiescent (Iq) :

400μA

Qualification Status :

Not Qualified

Mounting Type :

Surface Mount

Number of Regulators :

2

Time@Peak Reflow Temperature-Max (s) :

10

Length :

4.5mm

Mount :

Surface Mount
