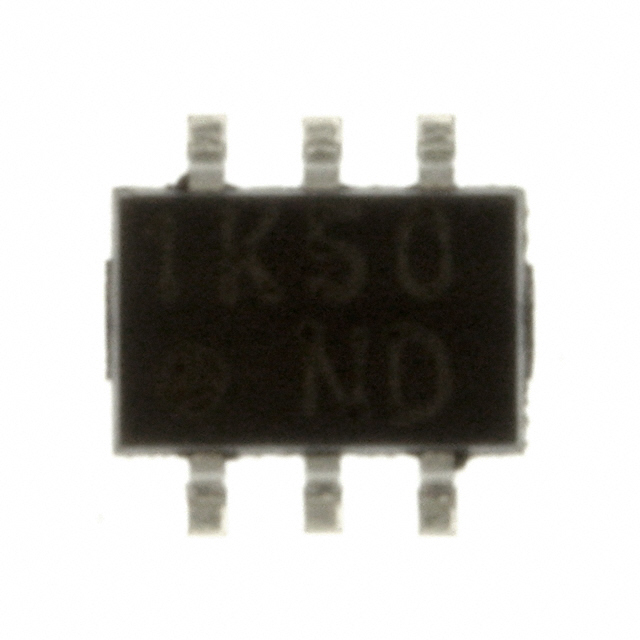

PQ1K503M2ZP

Manufacturer :

Sharp Microelectronics

Product Category :

Voltage Regulators - DC DC Switching Regulators

Reach Compliance Code :

Unknown

Lead Free :

Contains Lead

Published :

2000

Qualification Status :

Not Qualified

JESD-30 Code :

R-PDSO-G6

Regulator Type :

FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

Output Voltage 1 :

5V

Input Voltage (Min) :

6V

Length :

3.4mm

Terminal Form :

Gull wing

Package / Case :

SOT-23-6

Output Voltage :

5V

Width :

2.2mm

Number of Regulators :

1

Max Operating Temperature :

80°C

Number of Terminations :

6

Terminal Position :

Dual

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

RoHS Status :

Non-RoHS Compliant

Mount :

Surface Mount

Number of Functions :

1

Output Current :

300mA

Dropout Voltage :

400mV

Min Operating Temperature :

-30°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Pitch :

0.95mm

Peak Reflow Temperature (Cel) :

240

Packaging :

Cut Tape (CT)

Input Voltage (Max) :

9V
