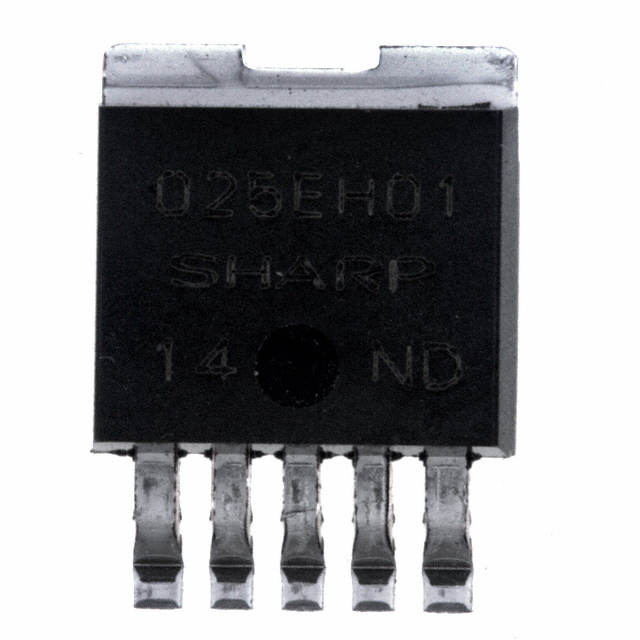

PQ025EH01ZZ
Or copy the link below:
- Mfr.Part #
- PQ025EH01ZZ
- Manufacturer
- Sharp Microelectronics
- Package / Case
- TO-263-6
- Datasheet
- Download
- Description
- IC REG LINEAR 2.5V 1A TO263
- Stock
- 34,285
- In Stock ：
- 34,285
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sharp Microelectronics
- Product Category :
- Voltage Regulators - Linear
- Input Voltage (Min) :
- 3V
- Reach Compliance Code :
- Unknown
- Number of Terminations :
- 5
- Mount :
- Surface Mount
- Output Voltage :
- 2.5V
- Max Operating Temperature :
- 85°C
- Number of Regulators :
- 1
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Package / Case :
- TO-263-6
- Output Current :
- 1A
- RoHS Status :
- Non-RoHS Compliant
- Terminal Position :
- Single
- Qualification Status :
- Not Qualified
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- Output Voltage 1 :
- 2.5V
- JESD-609 Code :
- e0
- Lead Free :
- Contains Lead
- Packaging :
- Tube
- Terminal Form :
- Gull wing
- Min Operating Temperature :
- -40°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Functions :
- 1
- Width :
- 8.4mm
- JESD-30 Code :
- R-PSSO-G5
- Published :
- 2000
- Height Seated (Max) :
- 4.25mm
- Peak Reflow Temperature (Cel) :
- 240
- Regulator Type :
- FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
- Datasheets
- PQ025EH01ZZ
PQ025EH01ZZ Documents
PMIC TO-263-6
PQ025EH01ZZ Overview
Deliveries are in Tube cases. The package is in a TO-263-6 case. Basically, the voltage regulator chip is made up of 5 terminations. This part implements 1 regulator ICs, which can be found in the following table. A FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR regulator is the type of regulator that is used for this device. Whenever the temperature is less than 85°C, it is recommended that you use it. The chip is operated at a maximum operating temperature of -40°C.
PQ025EH01ZZ Features
The maximum operating temperature of -40°C
PQ025EH01ZZ Applications
There are a lot of Sharp Microelectronics
PQ025EH01ZZ Linear Voltage Regulators applications.
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
