    Images are for reference only.

    Delivery：

    Payment：

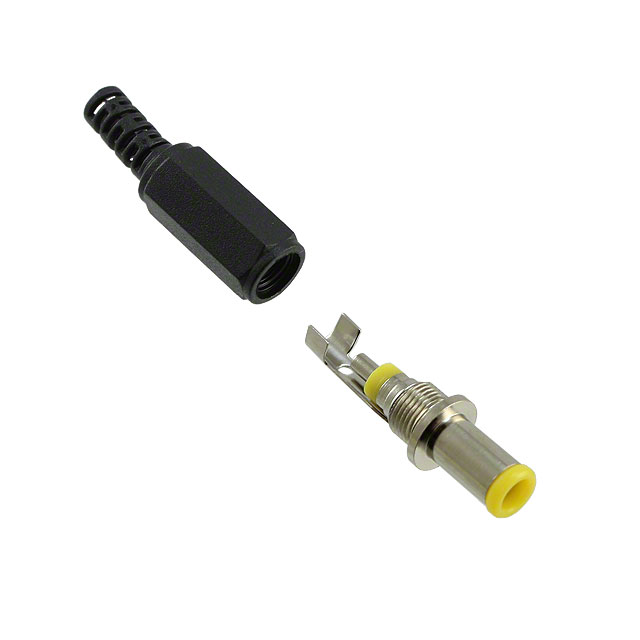

    PP-015

    Share

    Or copy the link below:

    Mfr.Part #
    PP-015
    Manufacturer
    CUI Devices
    Package / Case
    Datasheet
    Download
    Description
    CONN PWR PLUG 1.X3.3X5.5MM SLDR
    Stock
    23,826
    In Stock ：
    23,826

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    CUI Devices
    Product Category :
    Power Connectors
    Contact Gender :
    Male
    Voltage - Rated :
    24VDC
    Factory Lead Time :
    12 Weeks
    Termination :
    Solder
    Number of Conductors :
    2
    Mating Length/Depth :
    0.374 9.50mm
    Internal Switch(s) :
    Does Not Contain Switch
    Insulation Resistance :
    100MOhm
    Min Operating Temperature :
    0°C
    Connector Type :
    PLUG
    Operating Temperature :
    0°C~40°C
    Current Rating (Amps) :
    4A
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Color :
    Black, Yellow
    Includes :
    2 pcs - 1 Connector, 1 Handle
    Gender :
    Male
    Packaging :
    Bulk
    Lead Free :
    Lead Free
    Housing Color :
    Black
    Number of Positions/Contacts :
    2 Conductors, 2 Contacts
    Mount :
    Free Hanging
    RoHS Status :
    RoHS Compliant
    Contact Material - Plating :
    Nickel
    Body Color :
    Silver, Black
    Shielding :
    Unshielded
    Contact Plating :
    Nickel
    Feature :
    Strain Relief
    Housing Material :
    Polyvinyl Chloride (PVC)
    Actual Diameter :
    0.039 (1.00mm ID), 0.217 (5.50mm OD)
    Diameter :
    1mm
    Industry Recognized Mating Diameter :
    1.00mm ID (0.039), 3.30mm ID (0.130), 5.500mm OD (0.217) EIAJ-4
    Max Operating Temperature :
    40°C
    Body Material :
    Brass
    Published :
    2011
    Contact Material :
    Brass
    Mounting Type :
    Free Hanging (In-Line)
    Current Rating :
    4A
    Insulation Color :
    Yellow
    Introducing Power Connectors CUI Devices PP-015 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature：0°C~40°C, Mounting Type：Free Hanging (In-Line), PP-015 pinout, PP-015 datasheet PDF, PP-015 amp .Beyond Power Connectors CUI Devices PP-015 ,we also offer KLDHCX-0202-BC-1, EP501A, EP501B, Our vast inventory has you covered. Contact us now for immediate solutions.
