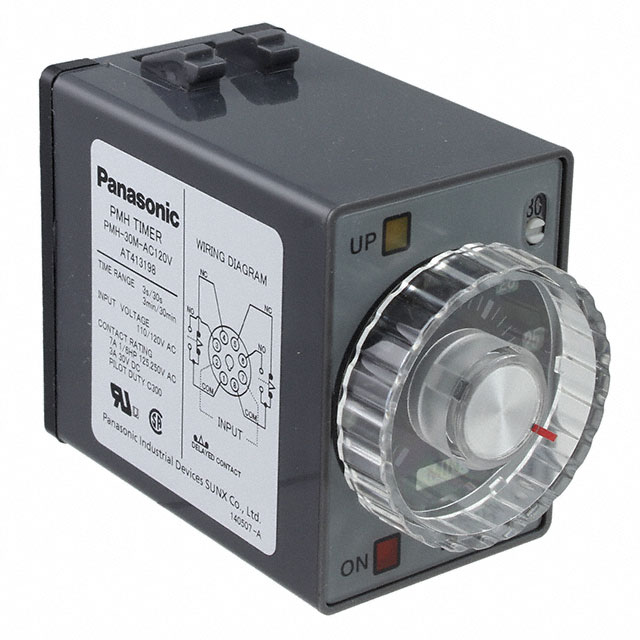

PMH-30M-AC120V

Manufacturer :

Panasonic

Product Category :

Time Delay Relays

Timing Initiate Method :

Input Voltage

Number of Contacts :

2

Function :

On-Delay

Mounting Type :

Socketable

Relay Type :

Mechanical Relay

Termination :

Connector

Depth :

50mm

Max Operating Temperature :

50°C

Max Current Rating :

7A

Throw Configuration :

DPDT

Published :

2002

Delay Time :

0.15 Sec ~ 30 Min

Mount :

Flush, Socket

Operating Supply Voltage :

120V

Series :

PMH

RoHS Status :

RoHS Compliant

Factory Lead Time :

10 Weeks

Width :

80.3mm

Length :

36mm

Timing Adjustment Method :

Hand Dial

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Min Operating Temperature :

-10°C

Number of Pins :

8

Termination Style :

Plug In, 8 Pin (Octal)

Voltage - Supply :

100V~120VAC

Circuit :

DPDT (2 Form C)

Contact Rating @ Voltage :

7A @ 250VAC
