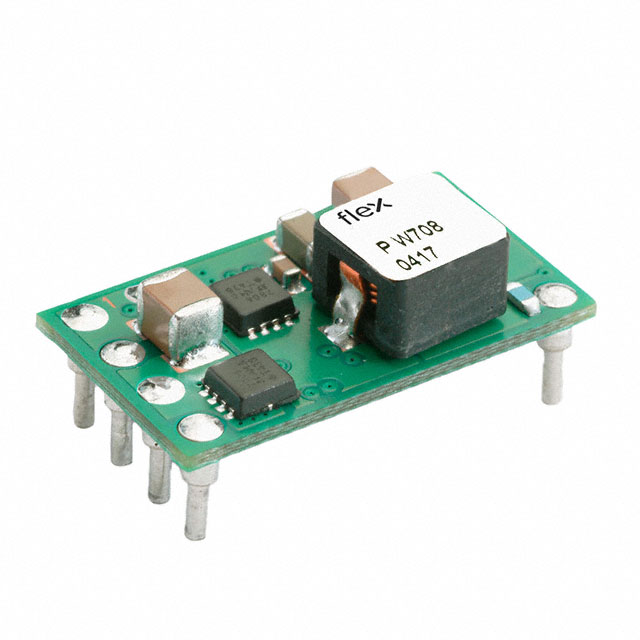

PMD4118OWP

Manufacturer :

Flex Power Modules

Product Category :

RoHS Status :

ROHS3 Compliant

Applications :

ITE (Commercial)

Trim/Adjustable Output :

yes

ECCN Code :

EAR99

Power (Watts) :

11W

Surface Mount :

No

Operating Temperature :

-40°C~125°C With Derating

Size / Dimension :

0.74Lx0.49W x 0.33 H 18.9mmx12.6mmx8.5mm

Number of Functions :

1

Input Voltage-Nom :

3.3V

Output Voltage :

1V

Type :

Non-Isolated PoL Module

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

Not Applicable

Terminal Position :

UNSPECIFIED

Voltage - Input (Min) :

3V

Package / Case :

6-DIP Module

Voltage - Output 1 :

0.9V~3.6V

Efficiency :

93.2%

Factory Lead Time :

16 Weeks

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Current - Output (Max) :

3A

Voltage - Input (Max) :

5.5V

JESD-30 Code :

R-XDMA-P6

Series :

PMD 4000 (10.8W)

Feature :

Adjustable Output, Remote On/Off

Number of Terminations :

6

Number of Outputs :

1

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Terminal Form :

PIN/PEG

Qualification Status :

Not Qualified
