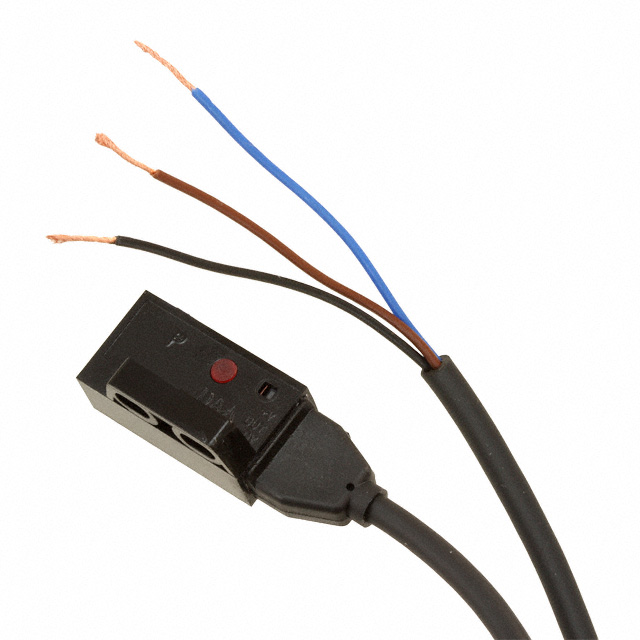

PM2-LL10-C1
Or copy the link below:
- Mfr.Part #
- PM2-LL10-C1
- Manufacturer
- Panasonic
- Package / Case
- Datasheet
- Download
- Description
- SENSOR REFLECTV 5MM NPN OPEN COL
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Panasonic
- Product Category :
- Optical Sensors - Photoelectric, Industrial
- Factory Lead Time :
- 8 Weeks
- Measurement Range-Min :
- 2.5 mm
- Published :
- 2008
- Sensors/Transducers Type :
- LINEAR POSITION SENSOR,PHOTOELECTRIC,RETROREFLECTIVE
- RoHS Status :
- RoHS Compliant
- Number of Pins :
- 3
- Connection Method :
- CABLE
- Output Configuration :
- NPN - Open Collector
- Light Source :
- Infrared (880nm)
- Operating Temperature :
- -10°C~55°C
- Mount :
- Screw
- Voltage - Supply :
- 5V~24V
- Termination :
- Wire
- Series :
- PM2
- Sensing Method :
- Reflective, Convergent
- Cable Length :
- 39.37 1m
- Output Current :
- 100mA
- Reach Compliance Code :
- Unknown
- Housing Material :
- PC
- Repeatability :
- 0.08
- Response Time :
- 800ns
- Sensing Distance :
- 0.197 (5mm)
- Measurement Range-Max :
- 8 mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- PM2-LL10-C1
PM2-LL10-C1 Documents
5V~24V PM2 Series Reflective, Convergent 3-Pin -10°C~55°C
PM2-LL10-C1 Overview
For reliable performance, the temperature of the photoelectric sensor should be set to -10°C~55°C. In order for these electronic components to work, they should be given 5V~24V voltage. For photoelectric sensors, 800ns is considered an ideal response time. To make the photoelectric sensor work properly, 3 pins must be connected. Photoelectric sensors require an output current of 100mA to operate.
PM2-LL10-C1 Features
Sensing Distance: 0.197 (5mm)
3 pins
Response Time: 800ns
Operating Temperature: -10°C~55°C
PM2 Series
PM2-LL10-C1 Applications
There are a lot of Panasonic Industrial Automation Sales
PM2-LL10-C1 Photoelectric Sensors applications.
- Automotive industry
- Mechanical engineering
- Entrance and gate
- Material handling
- Pharmaceutical industry
- Checking objects on production lines or conveyors
- Counting small objects
- Detecting colours
- Monitoring bigger areas for objects with light grids
- Measuring distance
