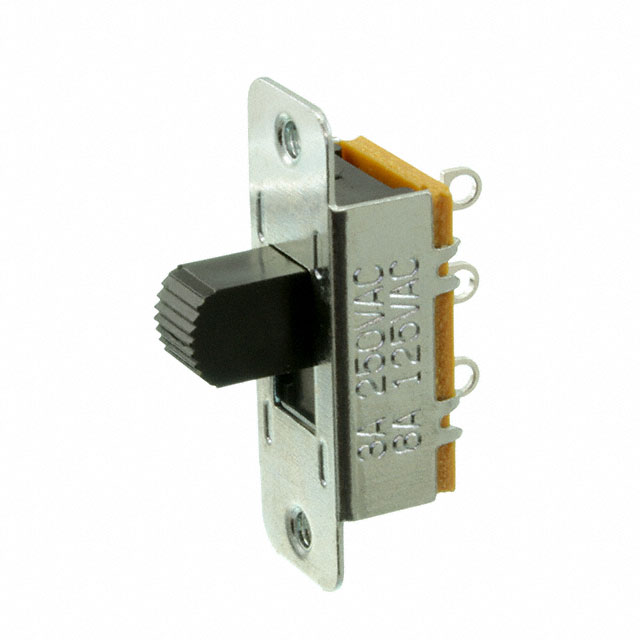

PM13B012

Manufacturer :

APEM Inc.

Product Category :

Body Breadth :

13.2 mm

HTS Code :

8536.50.90.50

Contact Timing :

NOT SPECIFIED

Orientation :

Straight

Operating Temperature :

-20°C~60°C

Body Height :

9mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Switch Travel :

4.90mm

Housing Material :

Steel

Current Rating (Amps) :

6A AC

Switch Type :

SLIDE SWITCH

Contact (AC) Max Rating R Load :

6A@125VAC

Terminal Material :

Brass

Contact Finish :

Silver

Contact Material :

Phosphor Bronze

Electrical Life :

10,000 Cycles

Switch Function :

On-On

Operating Force :

500gf

Actuator Material :

Polyamide (PA66), Nylon 6/6

Mount :

Panel, Solder

Additional Feature :

UL and CSA

ECCN Code :

EAR99

Dielectric Withstanding Voltage :

1000VAC V

JESD-609 Code :

e3

Factory Lead Time :

8 Weeks

Series :

PM

Illumination Type :

Non-Illuminated

Number of Positions :

2

Termination :

Solder

Current Rating :

6A

Actuator Length :

9.00mm

Max Voltage Rating (AC) :

250V

Voltage - Rated AC :

125V

Termination Style :

Solder Lug

Mounting Type :

Panel Mount

Packaging :

Tube

Contact Current(AC)-Max :

6A

Insulation Material :

Phenolic

Contact Resistance :

30mOhm

Washability :

SOLVENT

Circuit :

SPDT

Actuator Type :

Standard

Terminal Finish :

Tin (Sn)

Insulation Resistance :

100000000Ohm

Body Length or Diameter :

35mm
