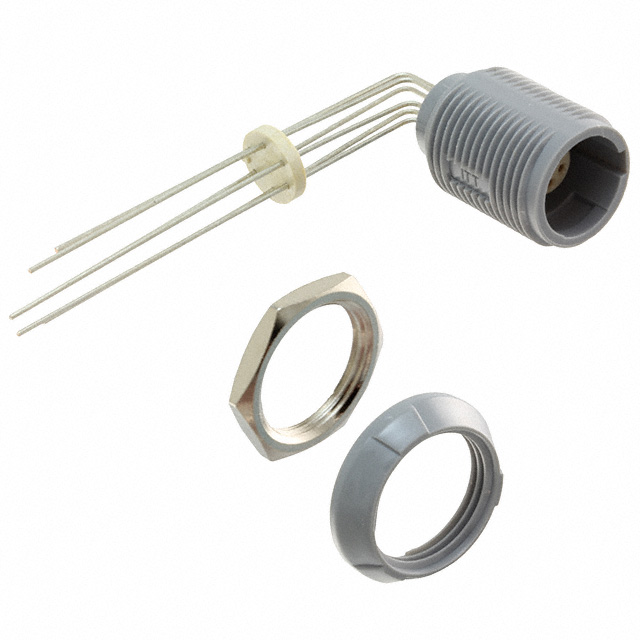

PLB3G820006

Manufacturer :

ITT Cannon

Product Category :

Circular Connector Assemblies

Features :

-

Shell Size, MIL :

-

Current Rating (Amps) :

6A

Termination Style :

Solder

Base Product Number :

PLB3G

Product :

Connectors

Manufacturer :

ITT Cannon

RoHS Status :

RoHS Compliant

Current Rating :

6A

Product Type :

Circular Push Pull Connectors

Mixed Contacts :

No

Orientation :

0°

Applications :

Industrial, Medical, Testing Equipment and Measurement

Ratings :

IP50

Factory Lead Time :

8 Weeks

Termination :

Solder

Moisture Sensitivity Level (MSL) :

Not Applicable

Number of Positions :

6

MIL Conformance :

No

Shell Finish :

-

Contact Material :

COPPER ALLOY

Fastening Type :

Latch Lock, Push-Pull

Contact Finish - Mating :

Gold

DIN Conformance :

No

Filter Feature :

No

Subcategory :

Circular Connectors

Package :

Bulk

Shell Size - Insert :

-

Shielding :

Unshielded

Backshell Material, Plating :

-

Contact Finish Thickness - Mating :

20.0μin 0.51μm

Material Flammability Rating :

-

Insert Material :

Polyetheretherketone (PEEK)

RoHS :

Details

Option :

GENERAL PURPOSE

ECCN Code :

EAR99

Brand :

ITT Cannon

Number of Contacts :

6 Contact

Contact Gender :

Socket (Female)

Mounting Feature :

Bulkhead - Front or Rear Side Nut

Cable Opening :

-

Series :

PL

Contact Plating :

Gold

IEC Conformance :

No

Ingress Protection :

IP50 - Dust Protected

Packaging :

Bulk

Wire Gauge :

20 AWG

Mount :

Panel, Through Hole

Shell Material :

Polysulfone (PSU)

Voltage Rating :

-

Operating Temperature :

-50°C~150°C

Primary Material :

Plastic

Backshell Type :

Solid

Mounting Type :

Panel Mount, Through Hole, Right Angle

Product Category :

Circular Push Pull Connectors

IP Rating :

IP50

Coupling Type :

Snap

Product Status :

Active

Connector Type :

Receptacle, Female Sockets

Mounting Style :

CABLE

Empty Shell :

No

Color :

Gray

Total Number of Contacts :

6
