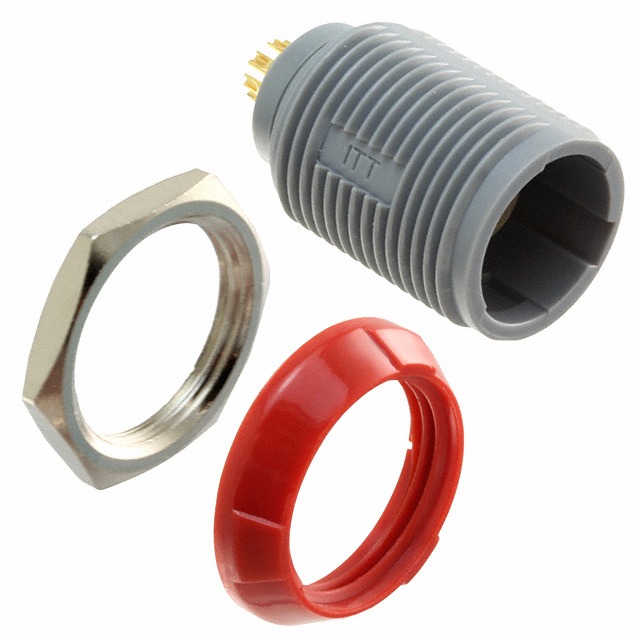

PLB1G220007
Or copy the link below:
- Mfr.Part #
- PLB1G220007
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 7POS SOLDER CUP
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- Circular Connector Assemblies
- Mounting Style :
- CABLE
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Finish - Mating :
- Gold
- HTS Code :
- 8536.69.40.20
- Product Category :
- Circular Push Pull Connectors
- DIN Conformance :
- No
- Backshell Material, Plating :
- -
- Color :
- Gray, Red
- Material Flammability Rating :
- -
- Operating Temperature :
- -50°C~150°C
- Backshell Type :
- Solid
- Voltage Rating :
- -
- Wire Gauge :
- 20 AWG
- Number of Pins :
- 7
- Packaging :
- Bulk
- Shell Size, MIL :
- -
- Primary Material :
- Plastic
- Fastening Type :
- Latch Lock, Push-Pull
- Published :
- 2016
- Factory Lead Time :
- 8 Weeks
- Insert Material :
- Polyetheretherketone (PEEK)
- Empty Shell :
- No
- Package :
- Bulk
- Termination Style :
- Solder
- Product Status :
- Active
- Shell Material :
- Polysulfone (PSU)
- Contact Plating :
- Gold
- Shell Size - Insert :
- -
- Subcategory :
- Circular Connectors
- Mount :
- Front, Panel, Rear Side Nut
- Brand :
- ITT Cannon
- Filter Feature :
- No
- Orientation :
- 0°
- Termination :
- Solder Cup
- Base Product Number :
- PLB1G
- ECCN Code :
- EAR99
- Min Operating Temperature :
- -50 °C
- IP Rating :
- IP50
- Shielding :
- Unshielded
- Coupling Type :
- Snap
- Manufacturer :
- ITT Cannon
- RoHS Status :
- RoHS Compliant
- Features :
- -
- Number of Positions :
- 7
- Ratings :
- IP50
- Max Operating Temperature :
- 150 °C
- Cable Opening :
- -
- Applications :
- Industrial, Medical, Testing Equipment and Measurement
- Connector Type :
- Receptacle, Female Sockets
- Product :
- Connectors
- Number of Contacts :
- 7 Contact
- Mixed Contacts :
- No
- Current Rating (Amps) :
- 5A
- Option :
- GENERAL PURPOSE
- Total Number of Contacts :
- 7
- Contact Material :
- COPPER ALLOY
- MIL Conformance :
- No
- Product Type :
- Circular Push Pull Connectors
- Contact Gender :
- Socket (Female)
- Contact Finish Thickness - Mating :
- 20.0μin 0.51μm
- Current Rating :
- 5A
- IEC Conformance :
- No
- Mounting Type :
- Panel Mount
- RoHS :
- Details
- Series :
- PL
- Ingress Protection :
- IP50 - Dust Protected
- Shell Finish :
- -
- Mounting Feature :
- Front and Rear Side Nut
- Datasheets
- PLB1G220007
PLB1G220007 Documents
Receptacle, Female Sockets Polysulfone (PSU) Panel Mount 7 Positions Solder Cup Gold - Bulk 0° Latch Lock, Push-Pull
PLB1G220007 Overview
The packaging contains Receptacle, Female Sockets.There is a Panel Mount mounting type for the device.This product is packaged in a case marked Bulk.Product number PL belongs to the PL Series.A 7 pin is provided on the device.Whenever the temperature is below 150 °C, it's best.There is a minimum temperature requirement of [0°C] for this device.There is a Front, Panel, Rear Side Nut mount on the part.This device operates at a temperature of -50°C~150°C.
PLB1G220007 Features
PL series
PLB1G220007 Applications
There are a lot of ITT Cannon, LLC
PLB1G220007 Circular Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
