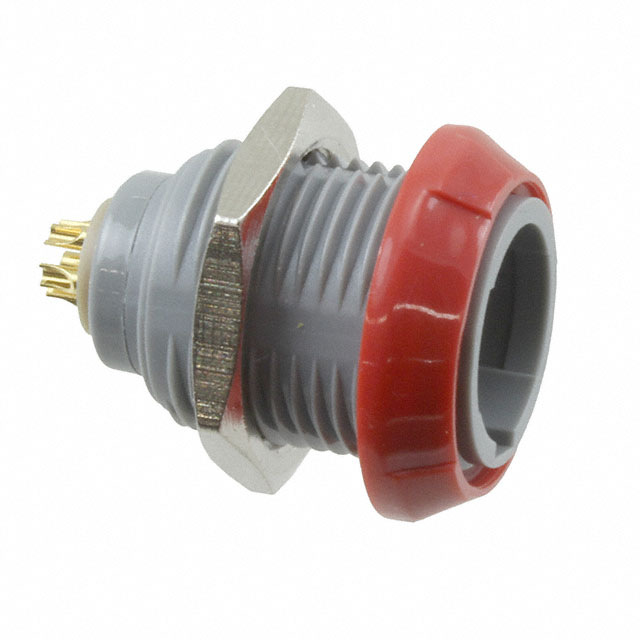

PLB1G220005
Or copy the link below:
- Mfr.Part #
- PLB1G220005
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 5POS SOLDER CUP
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- Circular Connector Assemblies
- Subcategory :
- Circular Connectors
- Material Flammability Rating :
- -
- Mounting Feature :
- Front and Rear Side Nut
- Coupling Type :
- Snap
- Primary Material :
- Plastic
- Mixed Contacts :
- No
- Features :
- -
- Color :
- Gray, Red
- Contact Plating :
- Gold
- Mounting Style :
- CABLE
- Termination Style :
- Solder
- Manufacturer :
- ITT Cannon
- Packaging :
- Bulk
- Orientation :
- 0°
- Total Number of Contacts :
- 5
- Option :
- GENERAL PURPOSE
- Base Product Number :
- PLB1G
- Cable Opening :
- -
- Shielding :
- Unshielded
- Shell Size - Insert :
- -
- Current Rating (Amps) :
- 7A
- DIN Conformance :
- No
- ECCN Code :
- EAR99
- Product Status :
- Active
- Shell Finish :
- -
- Connector Type :
- Receptacle, Female Sockets
- Contact Finish Thickness - Mating :
- 20.0μin 0.51μm
- Termination :
- Solder Cup
- Mount :
- Front, Panel, Rear Side Nut
- Product :
- Connectors
- IEC Conformance :
- No
- RoHS Status :
- RoHS Compliant
- RoHS :
- Details
- Backshell Material, Plating :
- -
- Product Type :
- Circular Push Pull Connectors
- Filter Feature :
- No
- Mounting Type :
- Panel Mount
- Number of Contacts :
- 5 Contact
- Wire Gauge :
- 20 AWG
- MIL Conformance :
- No
- Operating Temperature :
- -50°C~150°C
- Brand :
- ITT Cannon
- Product Category :
- Circular Push Pull Connectors
- Min Operating Temperature :
- -50 °C
- Shell Size, MIL :
- -
- Contact Finish - Mating :
- Gold
- Empty Shell :
- No
- Factory Lead Time :
- 8 Weeks
- Max Operating Temperature :
- 150 °C
- Published :
- 2016
- Applications :
- Industrial, Medical, Testing Equipment and Measurement
- Number of Pins :
- 5
- Contact Gender :
- Socket (Female)
- Series :
- PL
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- IP Rating :
- IP50
- Current Rating :
- 7A
- Number of Positions :
- 5
- Fastening Type :
- Latch Lock, Push-Pull
- Shell Material :
- Polysulfone (PSU)
- Ratings :
- IP50
- Package :
- Bulk
- Backshell Type :
- Solid
- Contact Material :
- COPPER ALLOY
- Insert Material :
- Polyetheretherketone (PEEK)
- Ingress Protection :
- IP50 - Dust Protected
- Voltage Rating :
- -
- Datasheets
- PLB1G220005
PLB1G220005 Documents
Receptacle, Female Sockets Polysulfone (PSU) Panel Mount 5 Positions Solder Cup Gold - Bulk 0° Latch Lock, Push-Pull
PLB1G220005 Overview
This product is packaged in a Receptacle, Female Sockets box.Panel Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the PL Series.It is equipped with 5 pins.Use it below 150 °C.A minimum temperature of -50 °C must be maintained for the operation of this device.By Front, Panel, Rear Side Nut, the part is mounted.Operating temperature is set to -50°C~150°C.
PLB1G220005 Features
PL series
PLB1G220005 Applications
There are a lot of ITT Cannon, LLC
PLB1G220005 Circular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
