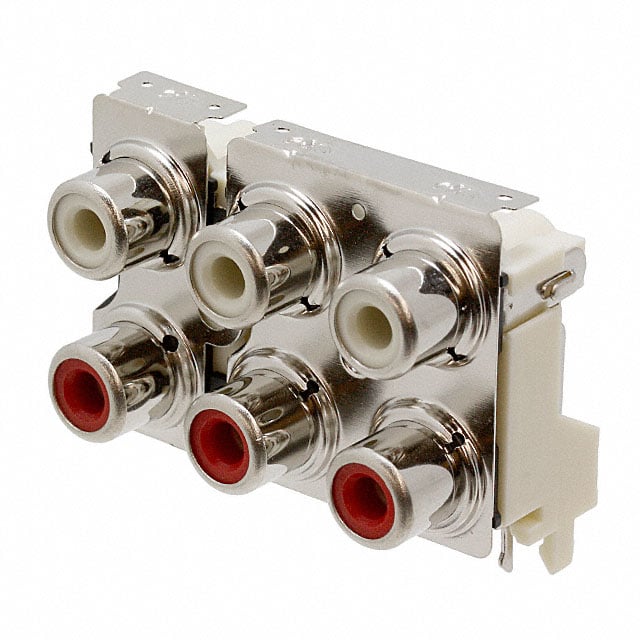

PJRAS3X2S01X
Or copy the link below:
- Mfr.Part #
- PJRAS3X2S01X
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN RCA JACK MONO 3.2MM R/A
- Stock
- 1,024
- In Stock ：
- 1,024
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- Number of Terminations :
- 9
- Operating Temperature :
- -25°C~85°C
- Termination :
- Solder
- Max Voltage Rating (AC) :
- 34V
- Body Material :
- COPPER ALLOY
- Number of Positions/Contacts :
- 6 Sets of 2 Conductors, 9 Contacts
- Orientation :
- RIGHT ANGLE
- Internal Switch(s) :
- Does Not Contain Switch
- Published :
- 2005
- Mount :
- Through Hole
- Insulation Material :
- Steel
- Option :
- GENERAL PURPOSE
- Contact Material - Plating :
- Tin
- Contact Plating :
- Silver, Tin
- Color :
- Red, White
- Connector Type :
- Phono (RCA) Jack
- Signal Lines :
- Mono
- Max Current Rating :
- 2A
- Configuration :
- 2X3 HORIZONTAL
- Number of Ports :
- 6
- IEC Conformance :
- No
- MIL Conformance :
- No
- Housing Material :
- Acrylonitrile Butadiene Styrene (ABS)
- Max Voltage Rating (DC) :
- 3.434kV
- Housing Color :
- Black
- Industry Recognized Mating Diameter :
- 3.20mm ID, 9.00mm OD (RCA)
- Voltage - Rated :
- 34VAC/DC
- Contact Finish - Mating :
- Nickel
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- DIN Conformance :
- No
- Series :
- PJR
- Shielding :
- Shielded
- Gender :
- FEMALE
- Number of Poles :
- 9
- Body Color :
- Silver, White
- Lead Free :
- Lead Free
- Length :
- 21.9mm
- RoHS Status :
- ROHS3 Compliant
- Depth :
- 41mm
- Current Rating :
- 2A
- Contact Material :
- COPPER ALLOY
- Mounting Type :
- Through Hole, Right Angle
- Insulation Color :
- Red, White
- Feature :
- Grounding Tab
- Packaging :
- Bulk
- Factory Lead Time :
- 12 Weeks
- Datasheets
- PJRAS3X2S01X
