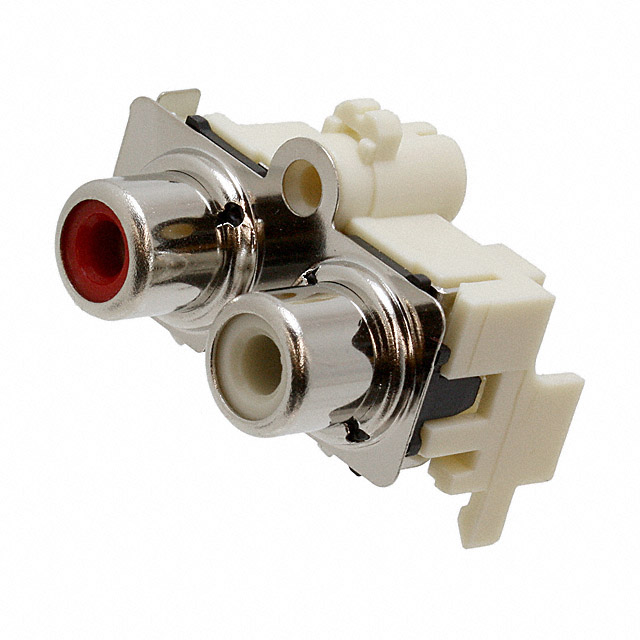

PJRAS2X1S01X
Or copy the link below:
- Mfr.Part #
- PJRAS2X1S01X
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN RCA JACK MONO 3.2MM R/A
- Stock
- 903
- In Stock ：
- 903
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- Number of Terminations :
- 6
- Gender :
- FEMALE
- Published :
- 2005
- Orientation :
- RIGHT ANGLE
- Factory Lead Time :
- 8 Weeks
- Contact Material - Plating :
- Tin
- Industry Recognized Mating Diameter :
- 3.20mm ID, 9.00mm OD (RCA)
- Feature :
- Grounding Tab
- Body Color :
- Gold, White
- MIL Conformance :
- No
- DIN Conformance :
- No
- Number of Positions/Contacts :
- 2 Sets of 2 Conductors, 4 Contacts
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Insulation Material :
- Steel
- Option :
- GENERAL PURPOSE
- Max Voltage Rating (AC) :
- 34V
- Packaging :
- Bulk
- Housing Material :
- Acrylonitrile Butadiene Styrene (ABS)
- Termination :
- Solder
- Connector Type :
- Phono (RCA) Jack
- Signal Lines :
- Mono
- Depth :
- 21.2mm
- Number of Pins :
- 2
- Length :
- 28.5mm
- Contact Finish - Mating :
- NOT SPECIFIED
- Number of Ports :
- 2
- Internal Switch(s) :
- Does Not Contain Switch
- Color :
- Red, White
- Series :
- PJR
- Voltage - Rated :
- 34VAC/DC
- RoHS Status :
- ROHS3 Compliant
- Shielding :
- Shielded
- Operating Temperature :
- -25°C~85°C
- ECCN Code :
- EAR99
- Body Material :
- COPPER ALLOY
- Contact Material :
- COPPER ALLOY
- Mounting Type :
- Through Hole, Right Angle
- Current Rating :
- 2A
- IEC Conformance :
- No
- Insulation Color :
- Red, White
- Contact Plating :
- Silver, Tin
- Number of Poles :
- 2
- Max Current Rating :
- 2A
- Mount :
- Through Hole
- Datasheets
- PJRAS2X1S01X
