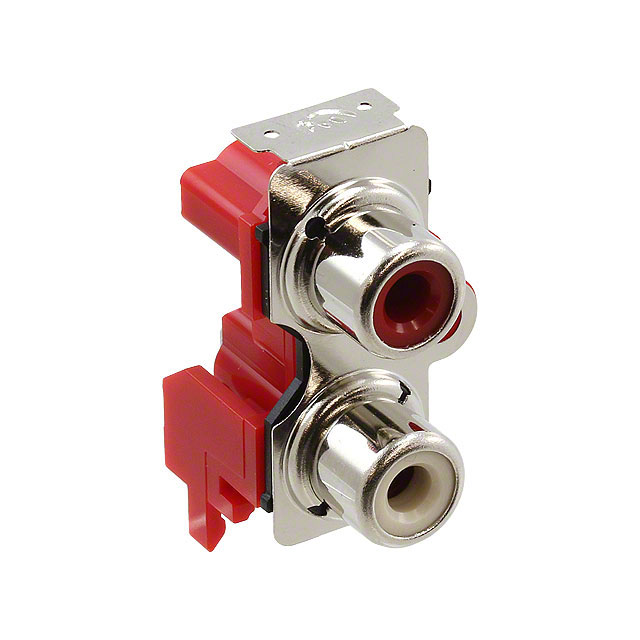

PJRAS1X2S01X
Or copy the link below:
- Mfr.Part #
- PJRAS1X2S01X
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN RCA JACK MONO 3.2MM R/A
- Stock
- 3,632
- In Stock ：
- 3,632
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- MIL Conformance :
- No
- Housing Material :
- Acrylonitrile Butadiene Styrene (ABS)
- Contact Finish - Mating :
- Nickel
- Body Material :
- COPPER ALLOY
- Mount :
- Through Hole
- Feature :
- Grounding Tab
- IEC Conformance :
- No
- Signal Lines :
- Mono
- Series :
- PJR
- Packaging :
- Bulk
- Shielding :
- Shielded
- Mounting Type :
- Through Hole, Right Angle
- Contact Material :
- COPPER ALLOY
- Contact Material - Plating :
- Tin
- Gender :
- FEMALE
- RoHS Status :
- ROHS3 Compliant
- Body Color :
- Silver, Black
- Published :
- 2006
- Number of Poles :
- 4
- Termination :
- Solder
- Number of Pins :
- 2
- Insulation Color :
- Red, White
- Operating Temperature :
- -25°C~85°C
- Voltage - Rated :
- 34VAC/DC
- Number of Positions/Contacts :
- 2 Sets of 2 Conductors, 3 Contacts
- DIN Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Industry Recognized Mating Diameter :
- 3.20mm ID, 9.00mm OD (RCA)
- Current Rating :
- 2A
- Internal Switch(s) :
- Does Not Contain Switch
- Factory Lead Time :
- 8 Weeks
- Connector Type :
- Phono (RCA) Jack
- Option :
- GENERAL PURPOSE
- Number of Ports :
- 2
- Datasheets
- PJRAS1X2S01X
