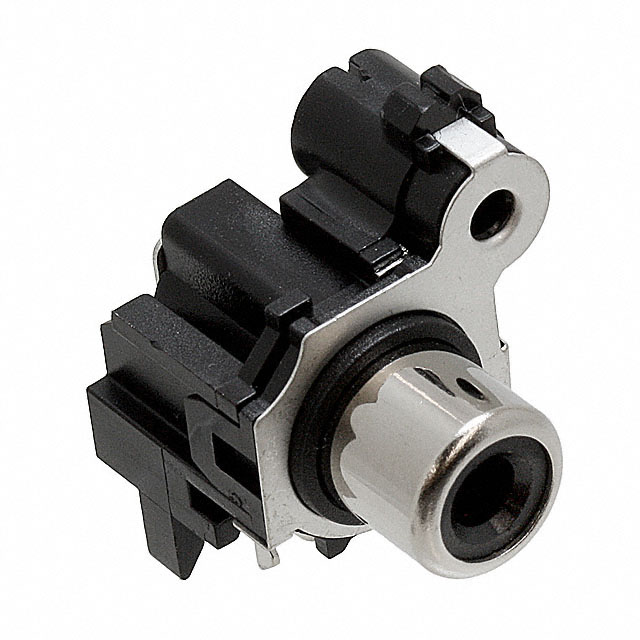

PJRAS1X1S01X
Or copy the link below:
- Mfr.Part #
- PJRAS1X1S01X
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN RCA JACK MONO 3.2MM R/A
- Stock
- 443
- In Stock ：
- 443
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- Factory Lead Time :
- 8 Weeks
- Package / Case :
- Metal
- MIL Conformance :
- No
- Option :
- GENERAL PURPOSE
- Termination :
- Solder
- Depth :
- 14.95mm
- Current Rating :
- 2A
- Max Voltage Rating (AC) :
- 34V
- Contact Finish - Mating :
- NOT SPECIFIED
- ECCN Code :
- EAR99
- Published :
- 2000
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Insulation Material :
- Steel
- Contact Material - Plating :
- Tin
- Mount :
- Through Hole
- DIN Conformance :
- No
- Connector Type :
- Phono (RCA) Jack
- Feature :
- Grounding Tab
- RoHS Status :
- ROHS3 Compliant
- Series :
- PJR
- Signal Lines :
- Mono
- Number of Positions/Contacts :
- 2 Conductors, 3 Contacts
- Operating Temperature :
- -25°C~85°C
- Industry Recognized Mating Diameter :
- 3.20mm ID, 9.00mm OD (RCA)
- Voltage - Rated :
- 34VAC/DC
- Length :
- 21.2mm
- Number of Ports :
- 1
- Orientation :
- RIGHT ANGLE
- Max Voltage Rating (DC) :
- 34V
- Contact Material :
- COPPER ALLOY
- Body Color :
- Silver, Black
- Shielding :
- Shielded
- Gender :
- FEMALE
- Max Current Rating :
- 2A
- Housing Material :
- Acrylonitrile Butadiene Styrene (ABS)
- Mounting Type :
- Through Hole, Right Angle
- IEC Conformance :
- No
- Packaging :
- Bulk
- Internal Switch(s) :
- Does Not Contain Switch
- Insulation Color :
- Black
- Body Material :
- Copper
- Number of Poles :
- 1
- Datasheets
- PJRAS1X1S01X
