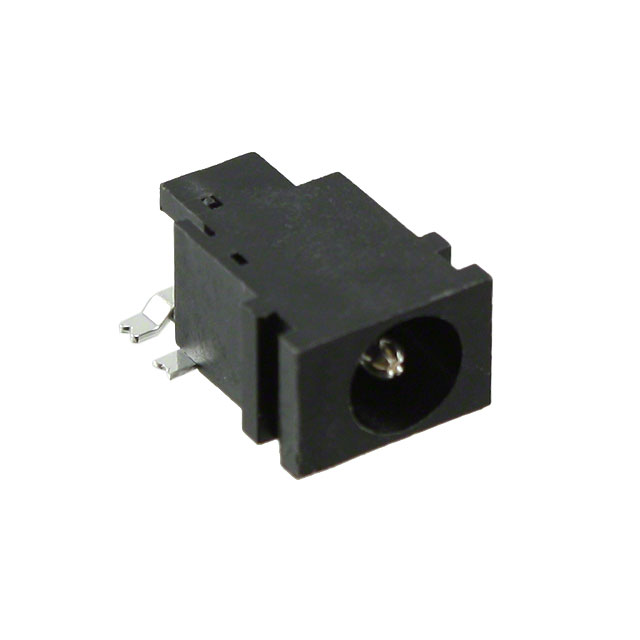

PJ1-021-SMT-TR
Or copy the link below:
- Mfr.Part #
- PJ1-021-SMT-TR
- Manufacturer
- CUI Devices
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- CONN PWR JACK 1.70X4.75MM SOLDER
- Stock
- 4,320
- In Stock ：
- 4,320
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Power Connectors
- Color :
- Black
- Package / Case :
- SMD/SMT
- Number of Positions/Contacts :
- 2 Conductors, 3 Contacts
- Packaging :
- Tape and Reel (TR)
- Feature :
- Board Guide
- Mating Length/Depth :
- 0.315 8.00mm
- Factory Lead Time :
- 11 Weeks
- Current Rating (Amps) :
- 5A
- Connector Type :
- JACK
- Actual Diameter :
- 0.065 (1.65mm ID), 0.203 (5.15mm OD)
- Max Operating Temperature :
- 85°C
- Internal Switch(s) :
- Single Switch, Normally Closed
- Published :
- 2006
- Contact Plating :
- Silver
- Orientation :
- Horizontal
- Mounting Type :
- Surface Mount, Right Angle
- Shielding :
- Unshielded
- Operating Temperature :
- -25°C~85°C
- Body Color :
- Black
- Contact Gender :
- Male
- Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 24VDC
- RoHS Status :
- RoHS Compliant
- Mount :
- Surface Mount
- Contact Material :
- Brass, Copper Alloy
- Insulation Resistance :
- 100MOhm
- Min Operating Temperature :
- -25°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Conductors :
- 2
- Industry Recognized Mating Diameter :
- 1.70mm ID (0.067), 4.75mm OD (0.187) EIAJ-3
- Housing Material :
- Polyamide (PA6T), Nylon 6T
- Termination :
- Solder
- Gender :
- Male
- Housing Color :
- Black
- Lead Free :
- Lead Free
- Current Rating :
- 5A
- Contact Material - Plating :
- Silver
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- PJ1-021-SMT-TR
