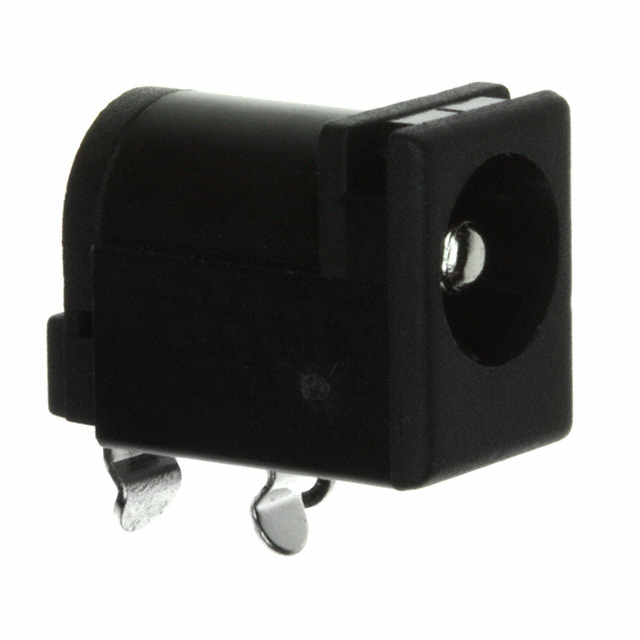

PJ-202B

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Min Operating Temperature :

-25°C

Housing Material :

Polybutylene Terephthalate (PBT)

Published :

2005

Factory Lead Time :

11 Weeks

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Color :

Black

Gender :

Male

Contact Material - Plating :

Tin

Voltage - Rated :

24VDC

Current Rating :

2.5A

Body Color :

Black

Material Flammability Rating :

UL94 V-0

Contact Material :

Brass, Copper Alloy

Orientation :

Horizontal

Actual Diameter :

0.098 (2.50mm ID), 0.256 (6.50mm OD)

Shielding :

Unshielded

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Mating Length/Depth :

0.354 9.00mm

Lead Free :

Lead Free

Insulation Resistance :

100MOhm

Internal Switch(s) :

Single Switch, Normally Closed

Current Rating (Amps) :

2.5A

Packaging :

Bulk

RoHS Status :

RoHS Compliant

Contact Plating :

Nickel

Connector Type :

JACK

Operating Temperature :

-25°C~85°C

Termination :

Kinked Pin, Solder Eyelet

Max Operating Temperature :

85°C

Flammability Rating :

UL94 V-0

Mount :

Through Hole

Number of Conductors :

2

Housing Color :

Black

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Through Hole, Right Angle

Contact Gender :

Male

Diameter :

2.5mm
