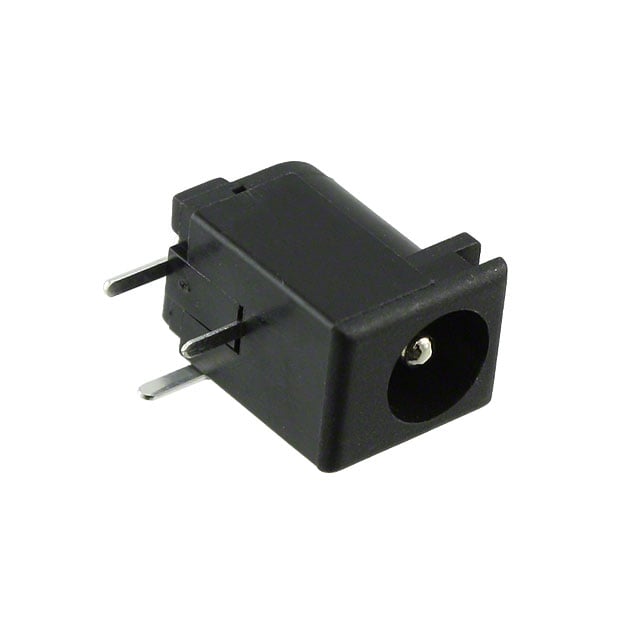

PJ-102AH

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Diameter :

2.1mm

Factory Lead Time :

11 Weeks

Mount :

Through Hole

Lead Free :

Lead Free

Published :

2011

Contact Material :

Brass, Copper Alloy

Shielding :

Unshielded

Mounting Type :

Through Hole, Right Angle

Internal Switch(s) :

Single Switch, Normally Closed

Number of Conductors :

2

Body Color :

Black

Contact Plating :

Nickel

Packaging :

Tray

RoHS Status :

RoHS Compliant

Min Operating Temperature :

-25°C

Gender :

Male

Contact Gender :

Male

Color :

Black

Insulation Resistance :

50mOhm

Flammability Rating :

UL94 V-0

Current Rating :

5A

Material Flammability Rating :

UL94 V-0

Termination :

Solder

Max Operating Temperature :

85°C

Actual Diameter :

0.079 (2.00mm ID), 0.256 (6.50mm OD)

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Housing Color :

Black

Operating Temperature :

-25°C~85°C

Contact Material - Plating :

Silver

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating (Amps) :

5A

Industry Recognized Mating Diameter :

2.00mm ID (0.079), 5.50mm OD (0.217)

Voltage - Rated :

24VDC

Orientation :

Horizontal

Connector Type :

JACK

Housing Material :

Polybutylene Terephthalate (PBT)

Mating Length/Depth :

0.354 9.00mm
