PIC16C781/JW

Manufacturer :

Microchip Technology

Product Category :

Microcontrollers

Core Architecture :

PIC

EEPROM Size :

--

Package / Case :

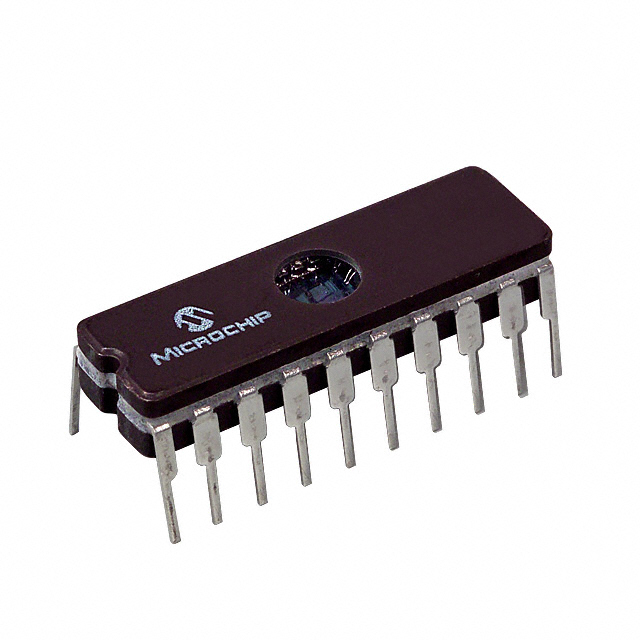

20-CDIP (0.300, 7.62mm) Window

Product Status :

Obsolete

Number of Pins :

20

Series :

PIC® 16C

Max Power Dissipation :

1W

RoHS :

Compliant

Mounting Type :

Through Hole

RAM Size :

128 x 8

Core Processor :

PIC

Data Converters :

A/D 8x8b; D/A 1x8b

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Timers/Counters :

2

Speed :

20MHz

Program Memory Type :

EPROM, UV

Number of I/O :

13

Data Converter :

A/D 8x8b; D/A 1x8b

Connectivity :

--

Memory Type :

EPROM

Package :

Tube

Packaging :

Tube

Number of Programmable I/O :

16

Voltage - Supply (Vcc/Vdd) :

4V~5.5V

Peripherals :

Brown-out Detect/Reset, POR, PWM, WDT

Access Time :

20 μs

Radiation Hardening :

No

Data Bus Width :

8B

Memory Size :

1.8kB

Min Supply Voltage :

4V

Operating Temperature :

0°C~70°C TA

Core Size :

8-Bit

Operating Supply Voltage :

5V

Max Supply Voltage :

5.5V

Oscillator Type :

Internal

Supplier Device Package :

20-CDIP

Frequency :

20MHz

Number of I/Os :

16

Min Operating Temperature :

0°C

RoHS Status :

Non-RoHS Compliant

Max Frequency :

20MHz

Program Memory Size :

1.75KB 1K x 14

Max Operating Temperature :

70°C

Lead Free :

Contains Lead

Mount :

Through Hole

Base Product Number :

PIC16C781

Base Part Number :

PIC16C781
