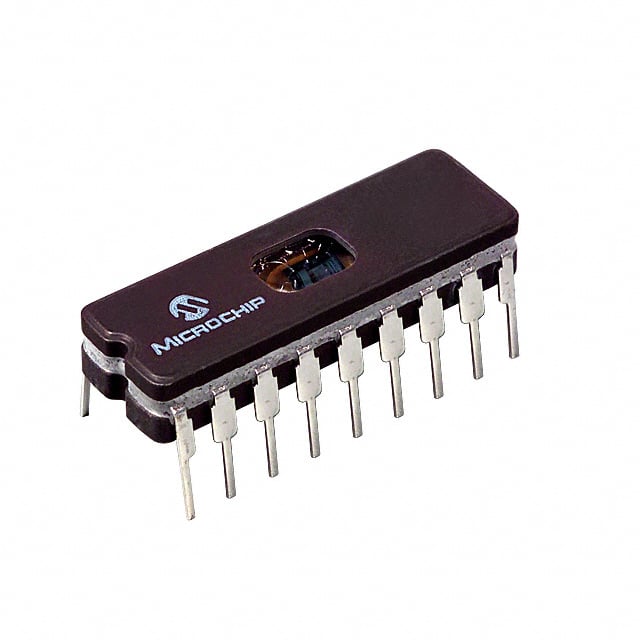

PIC16C554/JW

Manufacturer :

Microchip Technology

Product Category :

Microcontrollers

Frequency :

20MHz

Base Product Number :

PIC16C554

Radiation Hardening :

No

Supply Voltage-Max (Vsup) :

5.5V

RAM Size :

80 x 8

Surface Mount :

No

Memory Size :

896B

Connectivity :

--

Bit Size :

8

Watchdog Timer :

yes

Product Status :

Obsolete

Lead Free :

Contains Lead

Max Power Dissipation :

1W

Max Frequency :

20 MHz

Terminal Finish :

Matte Tin (Sn)

Number of Terminations :

18

DMA Channels :

No

Published :

1998

Packaging :

Tube

Access Time :

20 μs

Min Operating Temperature :

0 °C

Oscillator Type :

External

Series :

PIC® 16C

Program Memory Size :

896B 512 x 14

RoHS Status :

Non-RoHS Compliant

Number of Pins :

18

ROM (words) :

512

CPU Family :

PIC

Operating Temperature :

0°C~70°C TA

Program Memory Type :

EPROM, UV

Min Supply Voltage :

3 V

Number of I/Os :

13

Power Supplies :

3.3/5V

Data Bus Width :

8B

Terminal Pitch :

2.54mm

DAC Channels :

No

Has ADC :

No

EEPROM Size :

--

Supply Voltage :

5V

ECCN Code :

EAR99

Package / Case :

18-CDIP (0.300, 7.62mm) Window

Memory Type :

EPROM

Pbfree Code :

yes

Max Supply Voltage :

5.5 V

Data Converters :

--

Supply Voltage-Min (Vsup) :

4.5V

Pin Count :

18

On Chip Program ROM Width :

14

Speed :

20MHz

Base Part Number :

PIC16C554

Number of Programmable I/O :

13

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER, RISC

RoHS :

Compliant

Terminal Position :

Dual

PWM Channels :

No

Max Operating Temperature :

70 °C

Supplier Device Package :

18-CERDIP

Peripherals :

POR, WDT

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Package :

Tube

Supply Current-Max :

20mA

Number of Timers/Counters :

8

Core Processor :

PIC

Core Architecture :

PIC

ROM Programmability :

UVPROM

Voltage - Supply (Vcc/Vdd) :

2.5V~5.5V

JESD-609 Code :

e3

Core Size :

8-Bit

Number of I/O :

13

Mounting Type :

Through Hole
