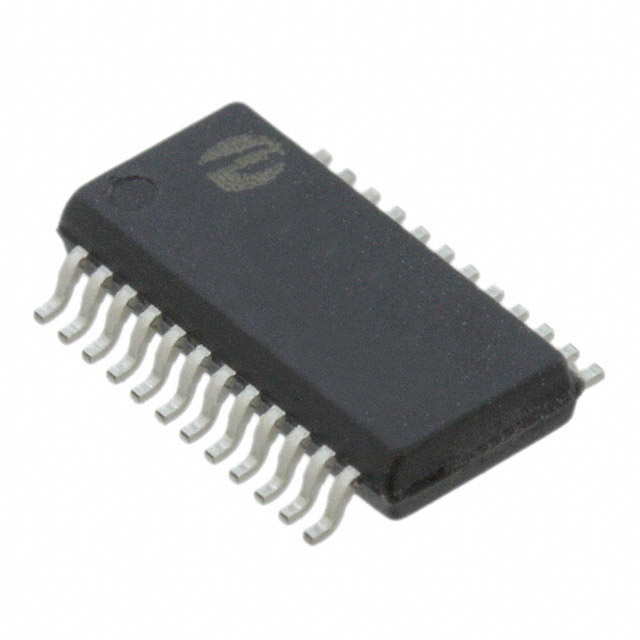

PI5C3861QE

Manufacturer :

Diodes Incorporated

Product Category :

Signal Switches, Multiplexers, Decoders

Turn On Delay Time :

6.5 ns

Power Dissipation :

500mW

Voltage Supply Source :

Single Supply

Time@Peak Reflow Temperature-Max (s) :

40

Output Polarity :

TRUE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

8.65mm

Propagation Delay :

6.5 ns

Number of Pins :

24

Package / Case :

24-SSOP (0.154, 3.90mm Width)

Number of Terminations :

24

Circuit :

10 x 1:1

Terminal Position :

Dual

Type :

Bus Switch

Supply Voltage :

5V

Throw Configuration :

SPST

JESD-609 Code :

e3

Published :

2007

Factory Lead Time :

18 Weeks

Quiescent Current :

10μA

Operating Supply Voltage :

5V

Lead Free :

Lead Free

Low Level Output Current :

120mA

Voltage - Supply :

4.75V~5.25V

Terminal Finish :

MATTE TIN

Terminal Pitch :

0.635mm

Family :

CBT/FST/QS/5C/B

Output Characteristics :

3-STATE

Base Part Number :

3861

High Level Output Current :

-120mA

Radiation Hardening :

No

Independent Circuits :

1

Peak Reflow Temperature (Cel) :

260

Mounting Type :

Surface Mount

Mount :

Surface Mount

Packaging :

Tube

Number of Ports :

2

Number of Bits :

10

Resistance :

10Ohm

Power Supplies :

5V

Terminal Form :

Gull wing

Number of Functions :

1

Width :

3.9mm

Supply Type :

Single

Operating Temperature :

-40°C~85°C

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant
