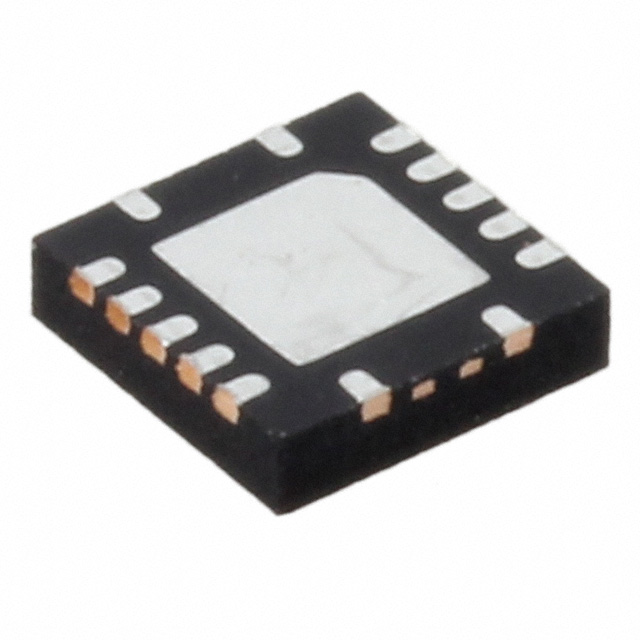

PI4ULS5V104ZBEX

Manufacturer :

Diodes Incorporated

Product Category :

Translators, Level Shifters

Number of Bits :

4

ECCN Code :

EAR99

Translator Type :

Voltage Level

Supply Voltage :

1.5V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Base Part Number :

4ULS5V104

Feature :

Auto-Direction Sensing

Output Type :

Tri-State, Non-Inverted

Mounting Type :

Surface Mount

Mount :

Surface Mount

Number of Channels :

4

Output Characteristics :

3-STATE

Low Level Output Current :

20μA

Number of Functions :

1

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

High Level Output Current :

-20μA

Propagation Delay :

4 ns

Height Seated (Max) :

0.9mm

Factory Lead Time :

18 Weeks

Voltage - VCCA :

1.2V~3.6V

Terminal Form :

NO LEAD

Length :

3.5mm

Voltage - VCCB :

1.65V~5.5V

Terminal Position :

QUAD

Packaging :

Cut Tape (CT)

Operating Temperature :

-40°C~85°C TA

Channel Type :

Bidirectional

Series :

ULS

Number of Ports :

2

Lead Free :

Lead Free

Data Rate :

100Mbps

Package / Case :

14-VFQFN Exposed Pad

Width :

3.5mm

Supply Voltage-Max (Vsup) :

3.6V

RoHS Status :

ROHS3 Compliant

Terminal Pitch :

0.5mm

Output Polarity :

TRUE

Logic IC Type :

BUS TRANSCEIVER

Operating Supply Voltage :

5.5V

Logic Function :

Level Shifter

Number of Terminations :

14

Number of Circuits :

1
