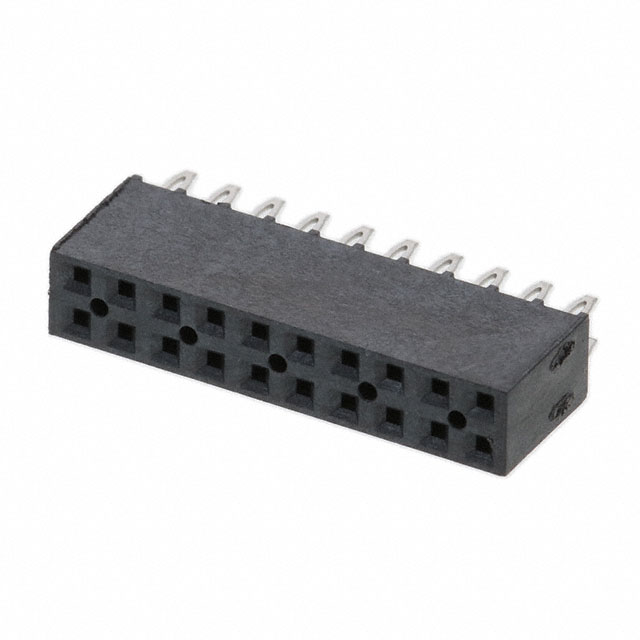

PHF-110-01-L-D

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Receptacles, Female Sockets

Filter Feature :

No

DIN Conformance :

No

Additional Feature :

TIGER BUY CONTACT

Mixed Contacts :

No

Material Flammability Rating :

UL94 V-0

Option :

GENERAL PURPOSE

Insulation Material :

Liquid Crystal Polymer (LCP)

Factory Lead Time :

3 Weeks

Pbfree Code :

yes

Mounting Type :

Through Hole

Mount :

Through Hole

Reliability :

COMMERCIAL

Fastening Type :

Push-Pull

Style :

Board to Board

Contact Length - Post :

0.123 3.12mm

Polarization Key :

POLARIZED HOUSING

JESD-609 Code :

e3

Number of Contacts :

20

Contact Material :

Phosphor Bronze

HTS Code :

8536.69.40.40

Operating Temperature :

-55°C~125°C

Packaging :

Tube

Series :

PHF

Number of Positions :

10

Insulation Height :

0.335 8.51mm

Insulation Color :

Black

Number of Positions Loaded :

All

Row Spacing - Mating :

0.100 (2.54mm)

Published :

2014

RoHS Status :

ROHS3 Compliant

Contact Finish - Mating :

Gold

Contact Type :

Forked

Termination :

Press-Fit, Solder

Contact Finish Thickness - Mating :

10.0μin 0.25μm

IEC Conformance :

No

Number of Conductors :

ONE

Reference Standard :

UL

Number Of PCB Rows :

2

PCB Contact Pattern :

RECTANGULAR

Contact Shape :

Square

Current Rating (Amps) :

4.8A per Contact

Number of Rows :

2

Body Breadth :

0.195 inch

ECCN Code :

EAR99

UL Flammability Code :

94V-0

Contact Finish - Post :

Tin

Gender :

FEMALE

MIL Conformance :

No

Connector Type :

Receptacle

Body Depth :

0.335 inch

Pitch - Mating :

0.100 2.54mm

Mating Contact Pitch :

0.1 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
