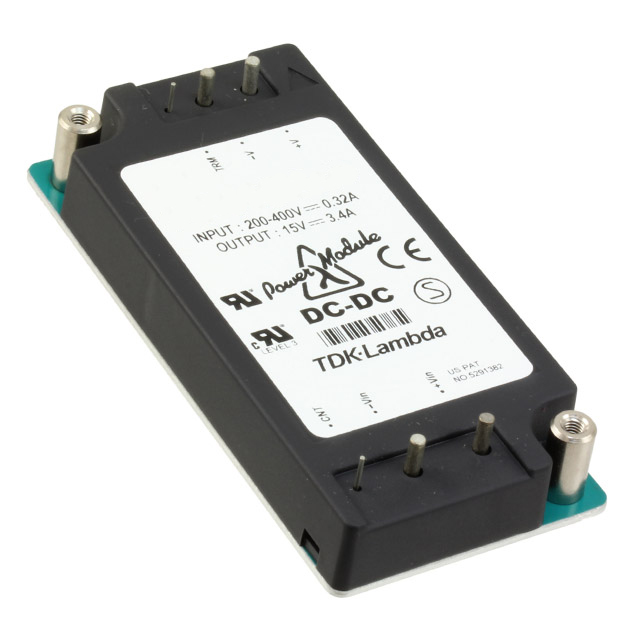

PH50S48-15

Manufacturer :

TDK-Lambda, Inc.

Product Category :

Published :

2007

Output Power :

50W

JESD-30 Code :

R-XXFM-X

Series :

PH-S (50W)

Height :

12.7mm

ECCN Code :

EAR99

Terminal Position :

UNSPECIFIED

Lifecycle Status :

Obsolete (Last Updated: 2 months ago)

Max Power Dissipation :

50W

Size / Dimension :

3.85Lx1.61W x 0.50 H 86.0mmx41.0mmx12.7mm

Output Current :

3.4A

Voltage - Input (Min) :

36V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Outputs :

1

Feature :

Remote On/Off, OCP, OTP, OVP

Applications :

ITE (Commercial)

Qualification Status :

Not Qualified

Voltage - Input (Max) :

76V

RoHS Status :

RoHS Compliant

Voltage - Isolation :

3kV

Current - Output 1 :

3.4A

Trim/Adjustable Output :

yes

Packaging :

Bulk

Pbfree Code :

No

Max Output Current :

3.4A

Output Voltage :

15V

Control Features :

Enable, Active Low

Input Voltage-Nom :

48V

Package / Case :

Module

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Operating Temperature :

-20°C~85°C

Number of Pins :

6

Mount :

Through Hole

Terminal Form :

UNSPECIFIED

Type :

Isolated Module

Number of Functions :

1
