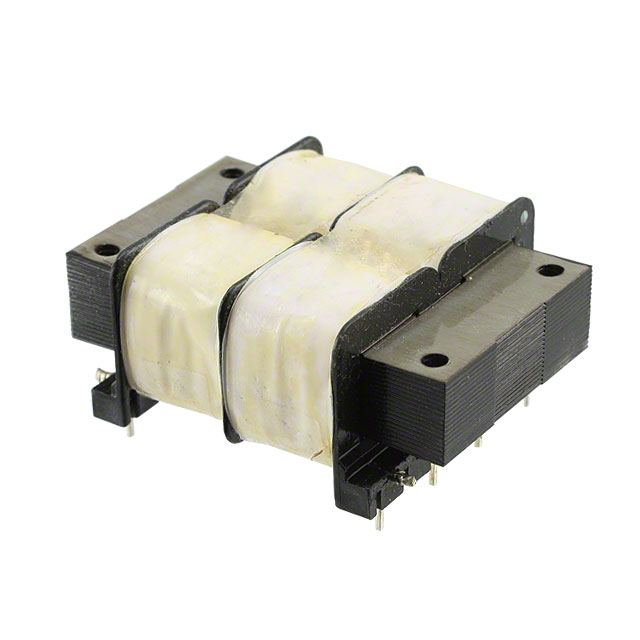

PF24-34
Or copy the link below:
- Mfr.Part #
- PF24-34
- Manufacturer
- Tamura
- Package / Case
- Datasheet
- Download
- Description
- PWR XFMR SEMI-TORO 24VA TH
- Stock
- 10,222
- In Stock ：
- 10,222
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Tamura
- Product Category :
- Power Transformers
- Lead Free :
- Contains Lead
- Voltage - Isolation :
- 1500Vrms
- Primary Winding(s) :
- Dual
- Current - Output (Max) :
- Parallel 850mA Series 430mA
- Termination :
- PC Pin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination Style :
- PC Pin
- Series :
- PF24
- Published :
- 2007
- Size / Dimension :
- 72.00mm Lx58.00mm W
- RoHS Status :
- RoHS Compliant
- Voltage - Secondary (Full Load) :
- Parallel 17V Series 34V
- Voltage - Primary :
- 115V 230V
- Packaging :
- Bulk
- Type :
- Semi-Toroidal
- Mount :
- Through Hole
- Mounting Type :
- Through Hole
- Number of Pins :
- 8
- Height :
- 31.8mm
- Height Seated (Max) :
- 31.80mm
- Power Rating :
- 24W
- ECCN Code :
- EAR99
- Power - Max :
- 24VA
- Center Tap :
- No
- Weight :
- 425g
- Max Output Current :
- 430mA
- Factory Lead Time :
- 24 Weeks
- Max Power Dissipation :
- 24W
- Datasheets
- PF24-34
