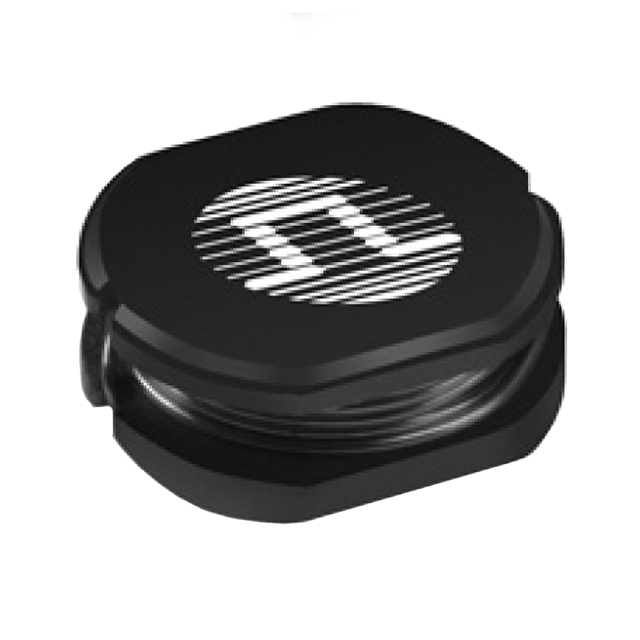

PF0581.153NLT

Manufacturer :

Pulse Electronics

Product Category :

Fixed Inductors

ECCN Code :

EAR99

Mount :

Surface Mount

Package :

Tape and Reel (TR)

Size / Dimension :

0.406Lx0.367W 10.32mmx9.32mm

Termination :

Standard

Current Rating :

2A

Inductor Application :

POWER INDUCTOR

Mounting Style :

PCB Mount

Current - Saturation :

2A

Current Rating (Amps) :

2 A

Product Type :

Fixed Inductors

Mounting Type :

Surface Mount

Height Seated (Max) :

0.174 4.42mm

Product :

Power Inductors

Features :

--

Operating Temperature :

-40°C~125°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height - Seated (Max) :

0.174 (4.42mm)

Max DC Current :

2A

Current - Saturation (Isat) :

2A

Type :

Wirewound

Termination Style :

SMD/SMT

Series :

PF0581NL

Terminal Placement :

DUAL ENDED

Radiation Hardening :

No

Depth :

9.32mm

Q @ Freq :

--

Subcategory :

Inductors, Chokes and Coils

Supplier Device Package :

--

Material - Core :

--

Manufacturer :

Pulse

Terminal Shape :

ONE SURFACE

Shape/Size Description :

CYLINDRICAL PACKAGE

Tolerance :

±10%

Package / Case :

Nonstandard

DC Resistance (DCR) :

60mOhm Max

Inductance :

15μH

HTS Code :

8504.50.80.00

Height :

4.4196mm

Number of Functions :

1

Frequency - Self Resonant :

--

Packaging :

Tape and Reel (TR)

RoHS Status :

RoHS Compliant

Core Type :

Drum

RoHS :

Details

Application :

Power

Product Status :

Active

Ratings :

--

Product Category :

Power Inductors - SMD

Brand :

Pulse Electronics

Factory Lead Time :

13 Weeks

Number of Terminations :

2

Shielding :

No
