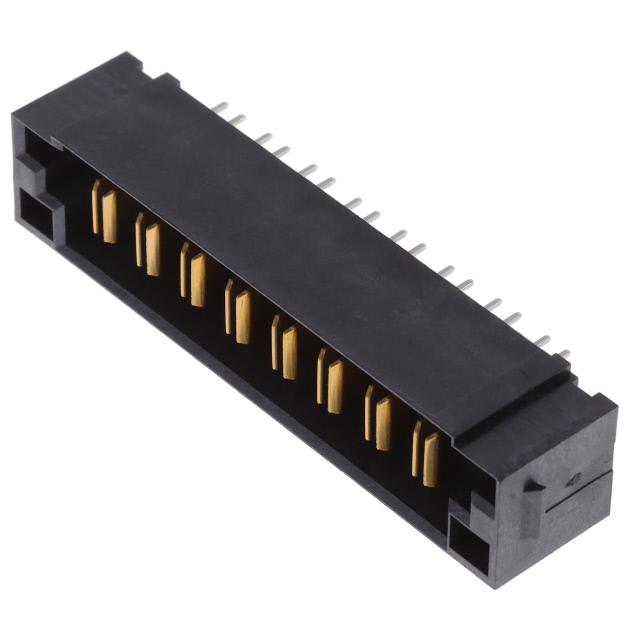

PET-08-02-L-VT

Manufacturer :

Samtec, Inc.

Product Category :

Blade Type Power Connector Assemblies

Factory Lead Time :

3 Weeks

Material - Insulation :

Liquid Crystal Polymer (LCP)

Contact Material :

COPPER ALLOY

Number of Positions :

8

Operating Temperature :

-55°C~125°C

Pitch :

0.250 6.35mm

ECCN Code :

EAR99

Filter Feature :

No

JESD-609 Code :

e3

Mounting Type :

Through Hole

Body Depth :

0.522 inch

Mount :

Through Hole

Empty Shell :

No

Gender :

Male

RoHS Status :

ROHS3 Compliant

Connector Type :

Header, Male Blades

Radiation Hardening :

No

Number of Conductors :

ONE

Voltage - Rated :

1025V

Total Number of Contacts :

8

Contact Finish Thickness :

10.0μin 0.25μm

Contact Style :

BLADE PIN-SKT

Current Rating (Amps) :

40A

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reliability :

COMMERCIAL

Body Breadth :

0.472 inch

Fastening Type :

Locking Ramp

Termination :

Solder

Option :

GENERAL PURPOSE

Orientation :

Straight

Mixed Contacts :

No

Body Length or Diameter :

2.65 inch

Reference Standard :

UL

Additional Feature :

Power Strip

IEC Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

MIL Conformance :

No

Plating Thickness :

30μin

Contact Finish :

Gold

Number of Rows :

1

Packaging :

Tray

Series :

PowerStrip™ 40 PET

Color :

Black
