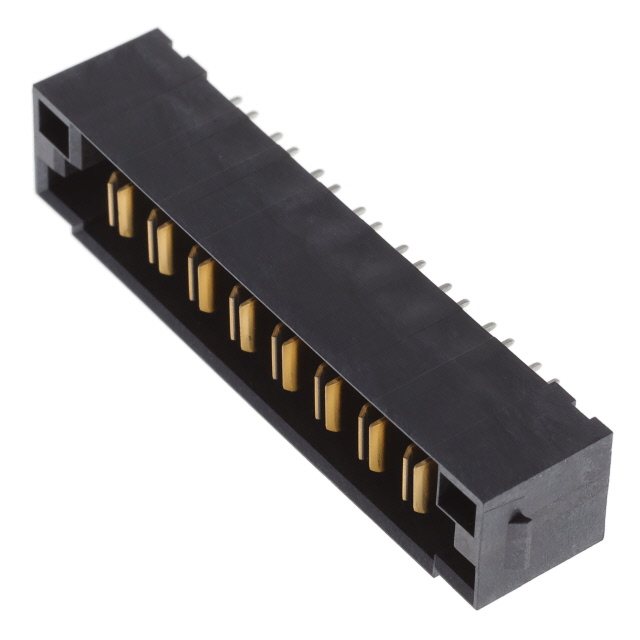

PET-08-01-S-VT

Manufacturer :

Samtec, Inc.

Product Category :

Blade Type Power Connector Assemblies

Material - Insulation :

Liquid Crystal Polymer (LCP)

Contact Style :

BLADE PIN-SKT

Voltage - Rated :

1025V

ECCN Code :

EAR99

Radiation Hardening :

No

Plating Thickness :

30μin

Reliability :

COMMERCIAL

Contact Material :

COPPER ALLOY

Color :

Black

Fastening Type :

Locking Ramp

Gender :

Male

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e3

Pitch :

0.250 6.35mm

Empty Shell :

No

Option :

GENERAL PURPOSE

Number of Rows :

1

Length - Termination :

0.093 inch

Body Depth :

0.575 inch

Pbfree Code :

yes

Connector Type :

Header, Male Blades

Dielectric Withstanding Voltage :

2250VAC V

Factory Lead Time :

3 Weeks

MIL Conformance :

No

Mixed Contacts :

No

Mounting Type :

Through Hole

Additional Feature :

Power Edge

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Body/Shell Style :

PLUG

Series :

PowerStrip™ 40 PET

Termination :

Solder

Operating Temperature :

-55°C~125°C

Number of Conductors :

ONE

Current Rating (Amps) :

40A

Mount :

Through Hole

Packaging :

Tray

Orientation :

Straight

Number of Positions :

8

Total Number of Contacts :

8

IEC Conformance :

No

Body Length or Diameter :

2.65 inch

Filter Feature :

No

RoHS Status :

ROHS3 Compliant

Contact Finish :

Gold
