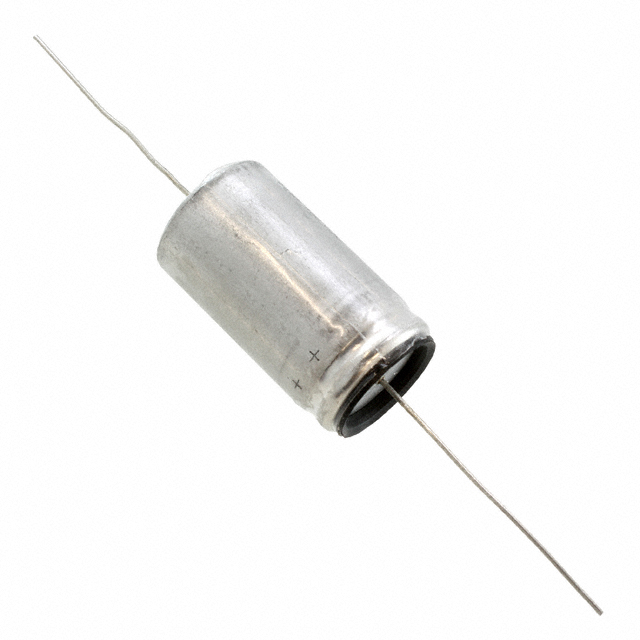

PEG124MG368AQL1

Manufacturer :

KEMET

Product Category :

Aluminum Electrolytic Capacitors

Leakage Current :

0.13252mA

Published :

2014

RoHS Status :

ROHS3 Compliant

Dielectric Material :

ALUMINUM (WET)

Ripple Current :

1.09A

Package / Case :

Axial, Can

Series :

PEG124

Terminal Shape :

Wire

JESD-609 Code :

e3

Termination :

Axial

Terminal Finish :

Tin (Sn)

Lifetime @ Temp :

2000 Hrs @ 125°C

Packaging :

Bulk

Mounting Type :

Through Hole

Radiation Hardening :

No

Diameter :

16mm

ESR (Equivalent Series Resistance) :

140mOhm @ 100Hz

Size / Dimension :

0.630Diax1.457L 16.00mmx37.00mm

Ripple Current @ Low Frequency :

1.09A @ 100Hz

Pbfree Code :

yes

Mount :

Through Hole

Operating Temperature :

-40°C~125°C

ECCN Code :

EAR99

Applications :

GENERAL PURPOSE

Voltage - Rated DC :

63V

Moisture Sensitivity Level (MSL) :

Not Applicable

Number of Terminations :

2

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Polarization :

Polar

Ripple Current @ High Frequency :

7.5A @ 5kHz

Tolerance :

±20%

Capacitance :

680μF

Factory Lead Time :

52 Weeks

Length :

37mm
