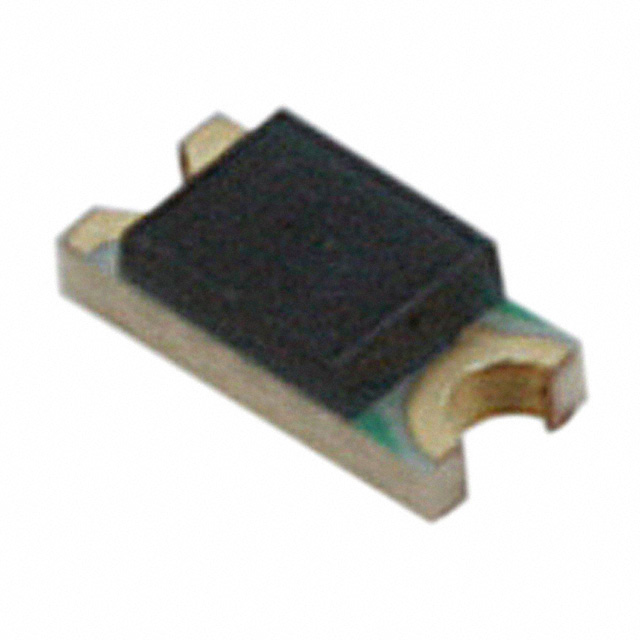

PD15-21B/TR8
Or copy the link below:
- Mfr.Part #
- PD15-21B/TR8
- Manufacturer
- Everlight Electronics
- Package / Case
- 2-SMD, No Lead
- Datasheet
- Download
- Description
- SENSOR PHOTODIODE 940NM 2SMD
- Stock
- 21,249
- In Stock ：
- 21,249
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Everlight Electronics
- Product Category :
- Optical Sensors - Photodiodes
- Diode Type :
- Pin
- Reverse Voltage (DC) :
- 32V
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 15 Weeks
- Packaging :
- Tape and Reel (TR)
- Fall Time (Typ) :
- 6 ns
- Max Power Dissipation :
- 150mW
- HTS Code :
- 8541.40.60.50
- Published :
- 2012
- Rise Time :
- 6ns
- Number of Functions :
- 1
- Dark Current :
- 10nA
- Wavelength :
- 940nm
- Mounting Type :
- Surface Mount
- Max Reverse Voltage (DC) :
- 32V
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Shape :
- RECTANGULAR
- Pbfree Code :
- yes
- Configuration :
- Single
- Infrared Range :
- yes
- Spectral Range :
- 730nm ~ 1100nm
- Radiation Hardening :
- No
- Mount :
- Surface Mount
- Operating Temperature :
- -25°C~85°C
- Lead Free :
- Lead Free
- Semiconductor Material :
- SILICON
- Package / Case :
- 2-SMD, No Lead
- Light Current-Nom :
- 0.0008mA
- Number of Pins :
- 2
- Datasheets
- PD15-21B/TR8
Surface Mount -25°C~85°C Tape & Reel (TR) Wavelength: 940nm 2-SMD, No Lead 10nA
PD15-21B/TR8 Overview
In order to protect these photodiodes from damage, they are packaged in the Tape & Reel (TR). It is necessary to place the photodiodes into 2-SMD, No Lead packages in order to protect them from damage. Continuously reverse-bias the photodiodes shouldn't exceed 32V. It has 2 pins for the photodiodes. A circuit should experience a maximum heat release of 150mW when photodiodes are used. With reverse voltage of 32V, the photodiodes can work properly. Without light, a photodiode has 10nA current.
PD15-21B/TR8 Features
Moisture Sensitivity Level (MSL): 3 (168 Hours)
Operating Temperature: -25°C~85°C
Packaging: Tape & Reel (TR)
Diode Type: PIN
Mount: Surface Mount
Spectral Range: 730nm ~ 1100nm
PD15-21B/TR8 Applications
There are a lot of Everlight Electronics Co Ltd
PD15-21B/TR8 Photodiodes applications.
- Electronic Equipment
- Industrial Automation
- Machine Controls
- Light Barriers
- Vision Controls
- Measurement Levelling
- High speed photo detectors
- Health Monitoring
- Heart Rate Monitoring
- Pulse Oximetry
