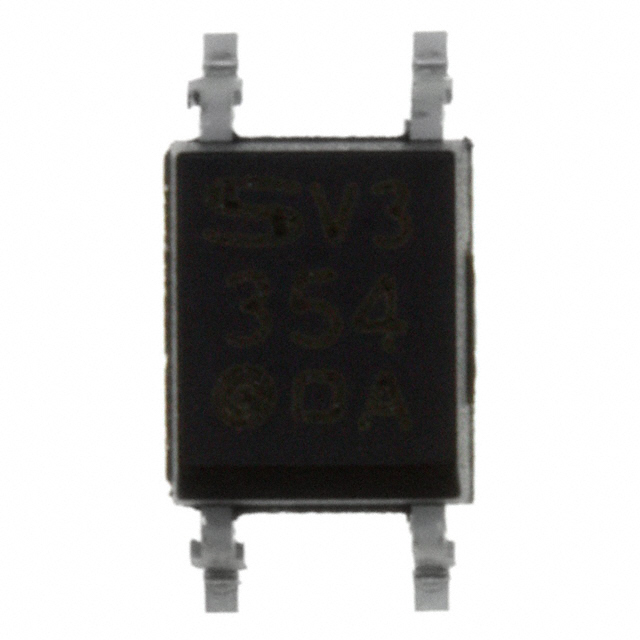

PC354N1TJ00F

Share

Or copy the link below:

Mfr.Part #
PC354N1TJ00F
Manufacturer
Sharp Microelectronics
Package / Case
4-SMD, Gull Wing
Datasheet
Download
Description
OPTOISOLATOR 3.75KV TRANS 4-SMD
Stock
86,258
In Stock :
86,258

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Sharp Microelectronics
Product Category :
Optoisolators - Transistor, Photovoltaic Output
Number of Elements :
1
Input Type :
AC, DC
Output Voltage :
80V
Width :
5.3mm
Voltage - Forward (Vf) (Typ) :
1.2V
Rise / Fall Time (Typ) :
4μs 3μs
Mount :
Surface Mount
Forward Current :
50mA
Rise Time :
18μs
Operating Temperature :
-30°C~100°C
Voltage - Isolation :
3750Vrms
Output Current per Channel :
50mA
Current Transfer Ratio (Max) :
150% @ 1mA
Vce Saturation (Max) :
200mV
Additional Feature :
UL RECOGNIZED
Input Current :
20mA
Max Input Current :
50mA
Output Type :
Transistor
Lead Free :
Lead Free
Power Dissipation :
170mW
Max Power Dissipation :
170mW
Mounting Type :
Surface Mount
Collector Emitter Breakdown Voltage :
80V
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Published :
2003
Fall Time (Typ) :
18 μs
Package / Case :
4-SMD, Gull Wing
Collector Emitter Voltage (VCEO) :
80V
RoHS Status :
RoHS Compliant
Packaging :
Cut Tape (CT)
Terminal Finish :
Tin/Copper (Sn/Cu)
Current Transfer Ratio (Min) :
50% @ 1mA
Max Collector Current :
50mA
Max Output Voltage :
80V
JESD-609 Code :
e2
Lead Pitch :
2.54mm
REACH SVHC :
Unknown
Number of Pins :
4
Radiation Hardening :
No
Collector Emitter Saturation Voltage :
200mV
Configuration :
Single
Introducing Optoisolators - Transistor, Photovoltaic Output Sharp Microelectronics PC354N1TJ00F from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-30°C~100°C, Mounting Type:Surface Mount, Package / Case:4-SMD, Gull Wing, Number of Pins:4, PC354N1TJ00F pinout, PC354N1TJ00F datasheet PDF, PC354N1TJ00F amp .Beyond Optoisolators - Transistor, Photovoltaic Output Sharp Microelectronics PC354N1TJ00F ,we also offer LTV-814S-TA1, LTV-827S-TA1, LTV-814HS-TA1, Our vast inventory has you covered. Contact us now for immediate solutions.

Sharp Microelectronics PC354N1TJ00F


PC354N1TJ00F datasheet pdf and Optoisolators - Transistor, Photovoltaic Output product details from Sharp Microelectronics stock available at
