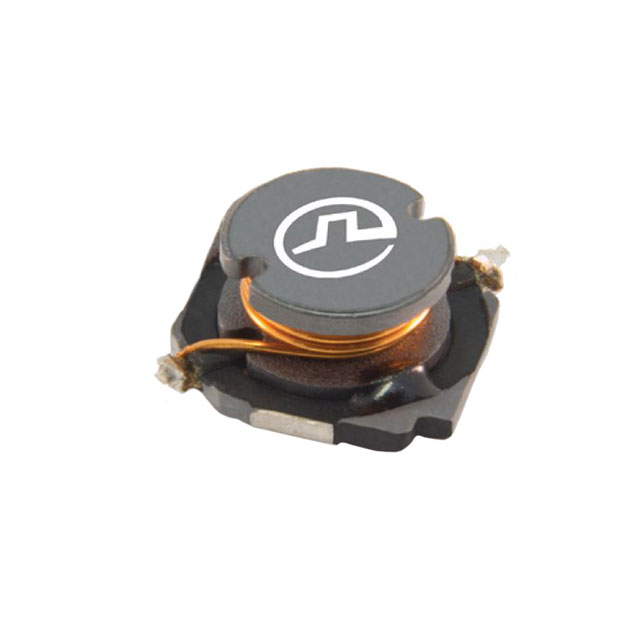

PA4307.682NLT

Manufacturer :

Pulse Electronics

Product Category :

Fixed Inductors

Product Category :

Power Inductors - SMD

Packaging :

Tape and Reel (TR)

Length :

7.3 mm

Current Rating :

3.8A

Width :

7.3 mm

RoHS Status :

RoHS Compliant

Mounting Type :

Surface Mount

Current Rating (Amps) :

3.8 A

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Subcategory :

Inductors, Chokes and Coils

ECCN Code :

EAR99

Manufacturer :

Pulse

Current - Saturation (Isat) :

-

Inductance :

6.8μH

Ratings :

-

Package / Case :

Nonstandard

Product Status :

Active

Operating Temperature :

-40°C~125°C

Core Type :

Drum

Inductance Frequency - Test :

100 kHz

Series :

PA4307.XXXNL

Maximum Operating Temperature :

+ 125 C

Mount :

Surface Mount

Height Seated (Max) :

0.138 3.50mm

HTS Code :

8504.50.80.00

Application :

COMMERCIAL

Product Type :

Fixed Inductors

Height :

3.5 mm

Product :

Power Inductors

Test Frequency :

100kHz

Termination Style :

SMD/SMT

Type :

Wirewound

Material - Core :

-

Saturation Current :

-

Shielding :

Unshielded

Q @ Freq :

-

Height - Seated (Max) :

0.138 (3.50mm)

Features :

-

Self Resonant Frequency :

-

Brand :

Pulse Electronics

Size / Dimension :

0.287Lx0.287W 7.30mmx7.30mm

Mounting Style :

PCB Mount

Supplier Device Package :

-

Factory Lead Time :

11 Weeks

Tolerance :

±30%

Minimum Operating Temperature :

- 40 C

Termination :

Standard

DC Resistance (DCR) :

95mOhm Max

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Frequency - Self Resonant :

-
