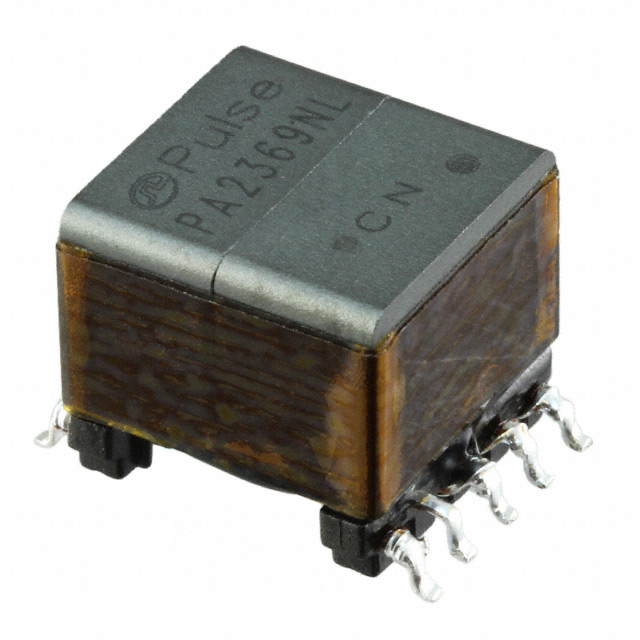

PA2369NL

Manufacturer :

Pulse Electronics

Product Category :

Switching Converter, SMPS Transformers

Primary Inductance :

37 μH

Product Depth (mm) :

17.65 mm

Mount :

Surface Mount

Min Operating Temperature :

-40°C

Inductance :

126.7 uH

Output Voltage 1 :

5V

Secondary Side Connection :

Parallel

Depth :

17.65mm

Input Voltage (Min) :

37V

Product Length (mm) :

14 mm

Package :

Bulk

Size / Dimension :

0.551Lx0.516W 14.00mmx13.11mm

Operating Frequency-Max :

250kHz

Element Configuration :

Dual

Product Type :

Power Transformers

Height Seated (Max) :

0.485 12.32mm

Product Status :

Active

ECCN Code :

EAR99

Operating Temp Range :

-40C to 130C

Physical Dimension :

L14.0XB17.65XH12.07 (mm)

Maximum Operating Temperature :

+ 130 C

Secondary Configuration :

Dual

Transformer Type :

SMPS TRANSFORMER

High Potential :

1500Vrms

Turns Ratio - Primary:Secondary :

5:2.5

Pin Count :

10

RoHS Status :

RoHS Compliant

Product Height (mm) :

12.32 mm

Other Names :

553-3763 PA2369NL-ND Q7466265

Operating Temperature Max Deg. C :

130C

RoHS :

Details

Footprint :

0.551 L x 0.695 W (14.00mm x 17.65mm)

Turns Ratio :

5:2.5:1

Operating Temperature Min Deg. C :

-40C

Height - Seated (Max) :

0.485 (12.32mm)

Product :

Flyback Transformers

Mounting :

Surface Mount

Manufacturer :

Pulse

Packaging :

Bulk

Package / Case :

SMD/SMT

Published :

2008

Brand :

Pulse Electronics

Series :

-

Additional Feature :

BREADTH DIM INCLUDES TERMINAL ALSO, FLYBACK TRANSFORMER

Lifecycle Status :

Production (Last Updated: 2 years ago)

Primary Configuration :

Single+Auxilary

Factory Lead Time :

9 Weeks

Max Operating Temperature :

130°C

Subcategory :

Transformers

Number of Secondary Winding :

2

Product Category :

Power Transformers

Number of Pins :

10

Rad Hardened :

No

Operating Temperature Range :

- 40 C to + 130 C

Radiation Hardening :

No

Input Voltage (Max) :

57V

Number of Primary Winding :

2

Lead Style :

Gull wing

Mounting Style :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead/Base Style :

Gull wing

Length :

14mm

Termination Style :

SMD/SMT

Operating Temperature :

-40 to 130 °C

Minimum Operating Temperature :

- 40 C
