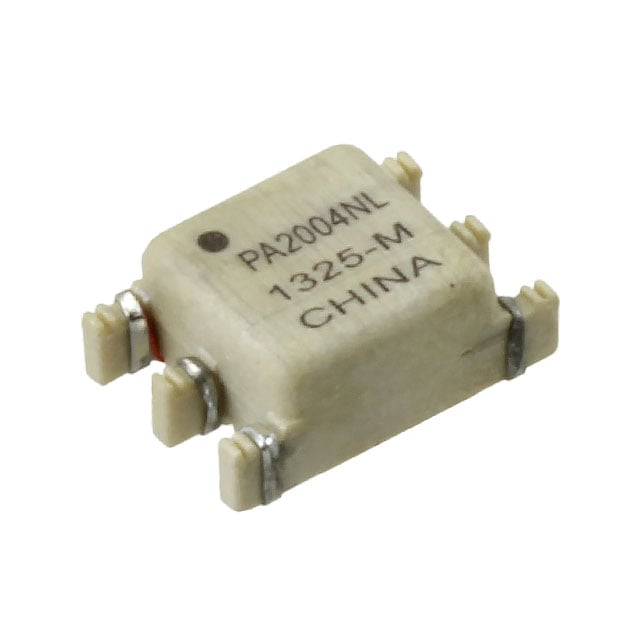

PA2004NL

Manufacturer :

Pulse Electronics

Product Category :

Pulse Transformers

Turns Ratio - Primary:Secondary :

1:1.1

Length :

8.63mm

ECCN Code :

EAR99

Series :

--

Application :

Signal

Operating Temperature :

-40°C~130°C

Factory Lead Time :

11 Weeks

RoHS Status :

RoHS Compliant

Isolation Voltage :

1500V

Published :

2008

Inductance :

437μH

Packaging :

Tube

ET Product-Min :

16 V-us

Transformer Type :

PULSE TRANSFORMER

ET (Volt-Time) :

20VμS

Number of Primary Winding :

1

Height Seated (Max) :

0.140 3.56mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Package :

Tube

Packing Method :

TR

Mount :

Surface Mount

Height - Seated (Max) :

0.140 (3.56mm)

Size / Dimension :

0.340Lx0.265W 8.64mmx6.73mm

Radiation Hardening :

No

Load Resistance :

0.85Ohm

Mounting Type :

Surface Mount

DC Resistance (DCR) :

850mOhm

Physical Dimension :

8.6mm x 6.73mm x 3.56mm

Width :

6.73mm

Number of Secondary Winding :

2

Product Status :

Active
