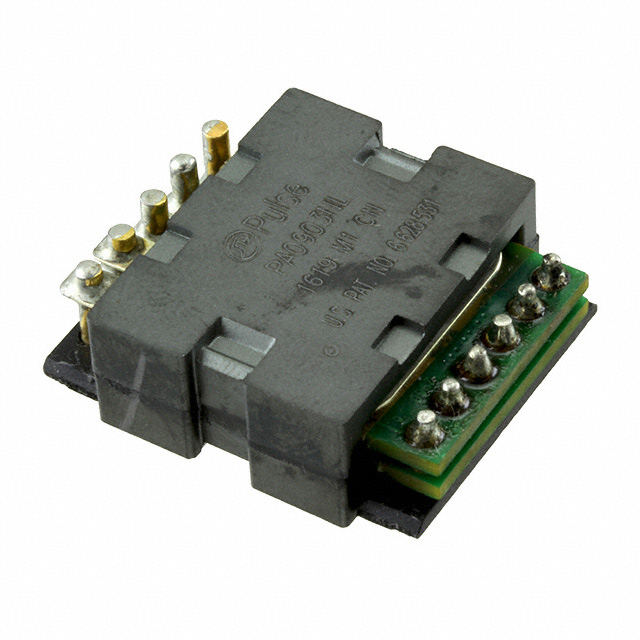

PA0903NL

Manufacturer :

Pulse Electronics

Product Category :

Switching Converter, SMPS Transformers

Series :

--

Mounting Type :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Physical Dimension :

L29.46XB25.4XH10.2 (mm)

Transformer Type :

RF TRANSFORMER

Published :

2015

ECCN Code :

EAR99

Depth :

25.4mm

Length :

29.46mm

Operating Temp Range :

-40C to 125C

Size / Dimension :

1.160Lx1.000W 29.46mmx25.40mm

Product Depth (mm) :

25.4(mm)

Pin Count :

11

RoHS Status :

RoHS Compliant

Package :

Tray

Height - Seated (Max) :

0.402 (10.20mm)

Rad Hardened :

No

Min Operating Temperature :

-40°C

Footprint :

1.000 L x 1.160 W (25.40mm x 29.46mm)

Number of Pins :

11

Height Seated (Max) :

0.402 10.20mm

Factory Lead Time :

15 Weeks

Product Length (mm) :

29.46(mm)

Max Operating Temperature :

125°C

Turns Ratio :

5T:5T:5T:4T

Product Height (mm) :

10.2(mm)

Packaging :

Tray

Product Status :

Active

Primary Inductance :

340 μH

Surface Mount :

yes
