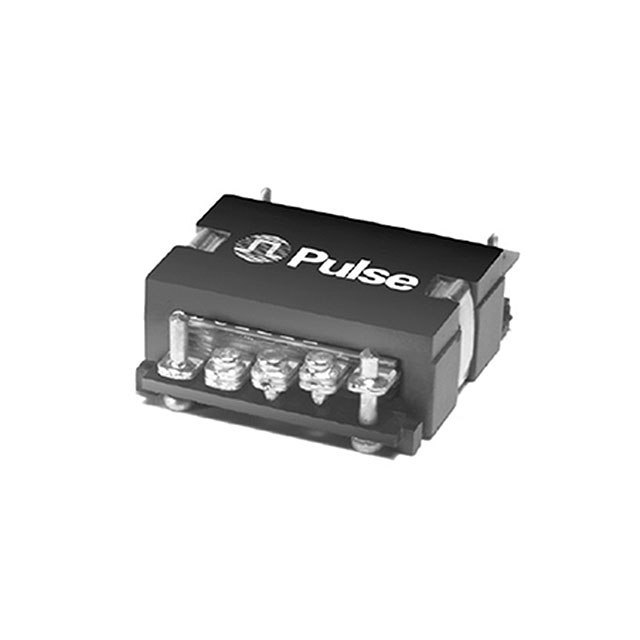

PA0806NL

Manufacturer :

Pulse Electronics

Product Category :

Switching Converter, SMPS Transformers

Element Configuration :

Dual

Published :

2007

Pbfree Code :

yes

Height :

8.85 mm

Voltage - Auxiliary :

-

Size / Dimension :

0.850Lx0.920W 21.60mmx23.37mm

Voltage - Primary :

18V~76V

Brand :

Pulse Electronics

Maximum Operating Temperature :

+ 125 C

Mounting Type :

Surface Mount

Height - Seated (Max) :

0.348 (8.85mm)

Subcategory :

Transformers

Product Category :

Power Transformers

Style :

Planar

Inductance :

153 uH

RoHS :

Details

Depth :

23.37mm

Physical Dimension :

L23.37XB21.6XH8.6 (mm)

Height Seated (Max) :

0.348 8.85mm

Manufacturer :

Pulse

Inductance @ Frequency :

-

Voltage - Isolation :

1500Vrms

Turns Ratio :

4 T:4 T

Length :

21.6 mm

Package :

Tray

Series :

PA08XXNL

Number of Secondary Winding :

2

ECCN Code :

EAR99

Number of Primary Winding :

3

RoHS Status :

RoHS Compliant

Turns Ratio - Primary:Secondary :

4:4

Frequency :

200kHz~700kHz

Termination Style :

SMD/SMT

Number of Pins :

11

Type :

For DC/DC Converters

Intended Chipset :

-

Width :

21.6mm

Operating Temperature :

-40°C~125°C

Factory Lead Time :

13 Weeks

Packaging :

Tray

Product Status :

Active

Power Rating :

140W

Footprint :

0.850 L x 0.920 W (21.60mm x 23.37mm)

Chipset Manufacturer :

-

Application :

Power

Mounting Style :

PCB Mount

Radiation Hardening :

No

Minimum Operating Temperature :

- 40 C

Primary Inductance :

153 μH

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Frequency :

200 kHz to 700 kHz

Applications :

-

Mount :

Flanges
